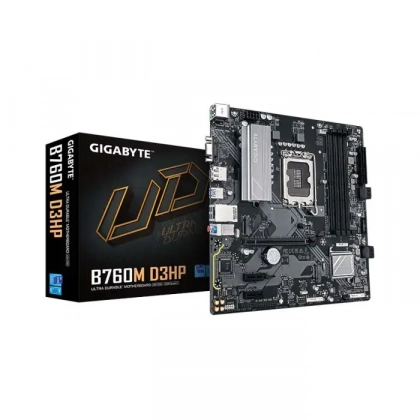

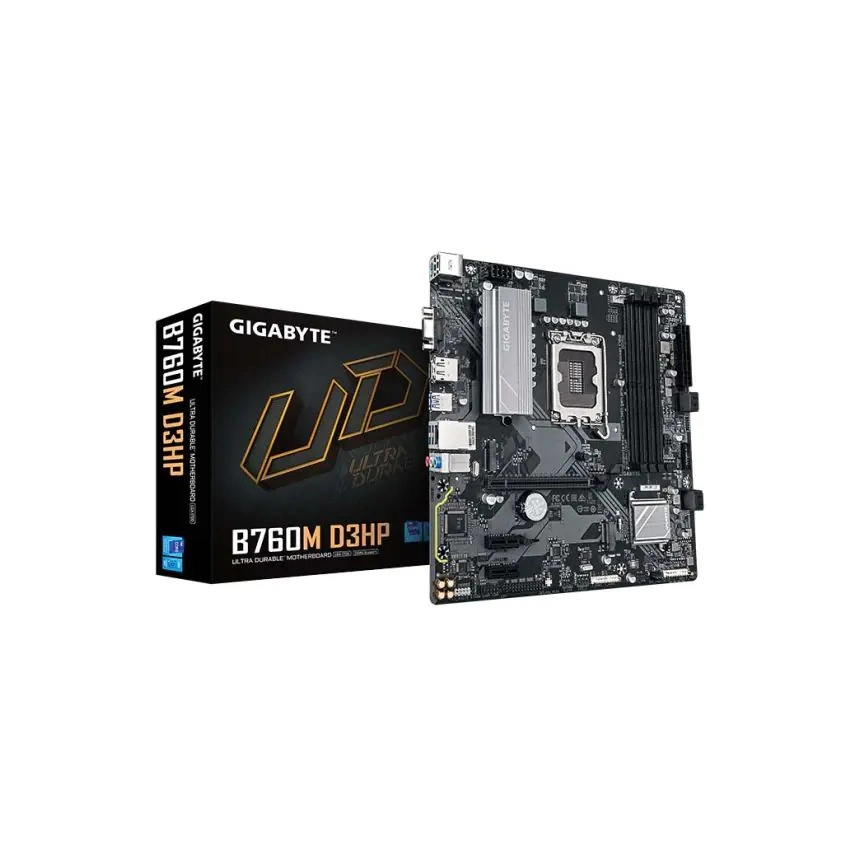

MB s1700 GIGABYTE B760M D3HP 1.x

Specifikacija
Proizvodac Gigabyte
Tip Maticna ploca
Model B760M D3HP DDR5
CPU LGA1700 socket, podrška za 14., 13. i 12. generaciju Intel® Core™, Pentium® Gold i Celeron® procesora
Cipset Intel® B760 Express cipset
Memorija 4 x DDR5 DIMM, do 256 GB, Dual-channel, podrška za DDR5 3200-5800+ MT/s, ECC Un-buffered i non-ECC memoriju
Grafika Intel® HD Graphics, 1x D-Sub, 1x HDMI 2.1, 2x DisplayPort 1.2, do cetiri displeja istovremeno
Audio Realtek® Audio CODEC, HD Audio 2/4/5.1/7.1-kanalni, S/PDIF Out
LAN Intel® 2.5 GbE LAN cip
Prošireni utori 1x PCIe 4.0 x16, 1x PCIe 3.0 x16 (x4), 1x PCIe 3.0 x1
Interfejs za skladištenje 1x M.2 PCIe 4.0, 1x M.2 PCIe 3.0, 4x SATA 6Gb/s,
USB portovi 1x USB-C 3.2 Gen2, 1x USB-A 3.2 Gen2, 4x USB-A 3.2 Gen1, 6x USB 2.0/1.1
Unutrašnji konektori 24-pin ATX, 8-pin ATX 12V, M.2 konektori, SATA 6Gb/s, RGB LED, audio header, USB headeri, TPM, Thunderbolt™, Clear CMOS
Zadnji panel PS/2, D-Sub, DisplayPort, HDMI, USB Type-C, USB 3.2 Gen2/Gen1, USB 2.0, RJ-45, audio jack
BIOS 128 Mbit AMI UEFI BIOS
Monitoring Detekcija napona, temperature, ventilatora, protoka tecnosti, upozorenje na grešku ventilatora
Softver GIGABYTE Control Center, Norton® Internet Security (OEM)
Operativni sistem Windows 11 64-bit, Windows 10 64-bit
Format Micro ATX, 24.4 x 24.4 cm
EAN 4719331864347
Garancija 3 godine
