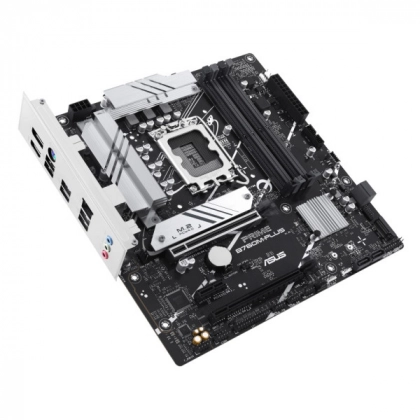

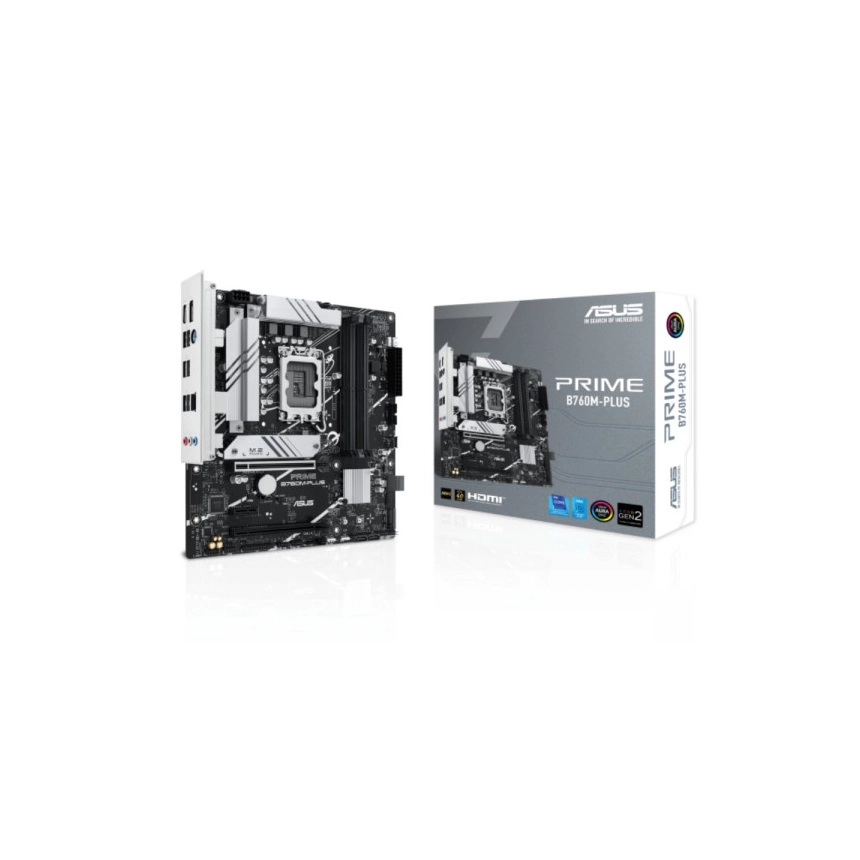

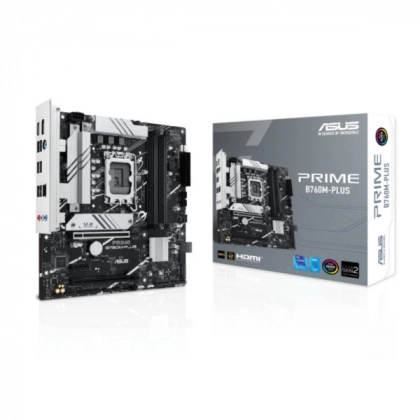

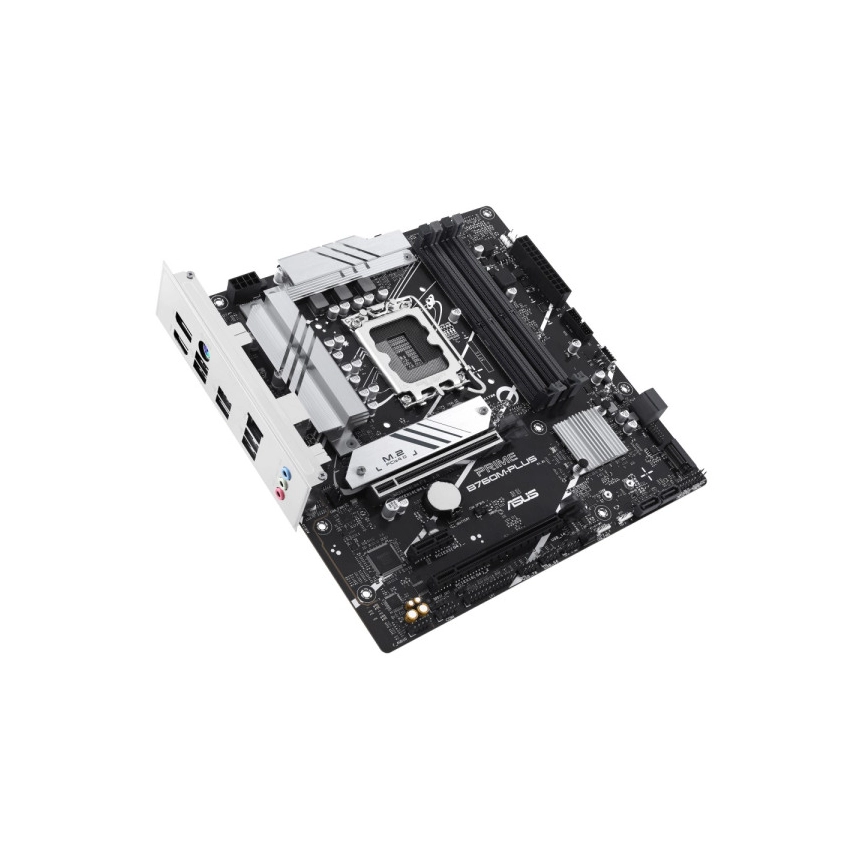

MB s1700 ASUS PRIME B760M-PLUS

Name: MB s1700 ASUS PRIME B760M-PLUS
Brand: ASUS
SKU: MAT000417A00000
Price: 15720 RSD
Availability: InStock

SKU: MAT000417A00000

MP cena:Web cena:

16.660 RSD

15.720RSD

Ušteda: 940 RSD

Cena za kupovinu na rate: 16.660 RSD

*Iskazana WEB cena sa popustom važi za online kupovinu, kao i za lično preuzimanje u prodavnici, isključivo za gotovinski način plaćanja.

Sigurna kupovina

Jednostavan proces povrata unutar 14 dana od kupovine.

Brza isporuka

Očekivani rok otpreme
1-3 radna dana

Click&Collect

Rezervišite online i preuzmite na Novom Beogradu, bez troškova dostave .

Podrška

Pomoć pri kupovini
069 57 50 555

Slični proizvodi

SAPPHIRE AMD B850M AM5 PURE Ryzen R9/R7/R5, 4x DDR5 8000MHz, PCIE 5, 1x M.2 Gen5, 1x M.2 Gen4, LAN 2.5 Gbps, WIFI6, USB, MATX

MP cena: 24.810 RSD

23.250 RSD

Ušteda: 1.560 RSD

Uporedi proizvod

SAPPHIRE AMD B850 AM5 NITRO+ Ryzen R9/R7/R5, 4x DDR5 8000MHz, PCIE 5, 1x M.2 Gen5, 2x M.2 Gen4, LAN 2.5 Gbps, WIFI7, USB, ATX

MP cena: 25.870 RSD

23.990 RSD

Ušteda: 1.880 RSD

Uporedi proizvod

SAPPHIRE AMD PULSE A620AM Ryzen R3/R5, 2x DDR4, PCIE 4, 1x M.2 Gen4, 1x M.2 Gen3, LAN 1 Gbps, USB, MATX

MP cena: 14.810 RSD

12.990 RSD

Ušteda: 1.820 RSD

Uporedi proizvod

SAPPHIRE AMD B850M AM5 PULSE Ryzen R9/R7/R5, 4x DDR5 7600MHz, PCIE 4.0 x16, 1x M.2 Gen5, 1x M.2 Gen4, LAN 2.5 Gbps, WIFI6, USB, Micro-ATX

MP cena: 19.400 RSD

17.990 RSD

Ušteda: 1.410 RSD

Uporedi proizvod

SAPPHIRE AMD B650M-E AM5 Ryzen R9/R7/R5, 2x DDR5 7600MHz, PCIe 4.0 x16, 1x M.2 Gen5, 1x M.2 Gen4, LAN 2.5 Gbps, Micro-ATX

MP cena: 15.040 RSD

13.990 RSD

Ušteda: 1.050 RSD

Uporedi proizvod

SAPPHIRE AMD B850M AM5 PURE Ryzen R9/R7/R5, 4x DDR5 8000MHz, PCIE 5, 1x M.2 Gen5, 1x M.2 Gen4, LAN 2.5 Gbps, WIFI6, USB, MATX

MP cena:
24.810 RSD23.250 RSD

Ušteda: 1.560 RSD

Uporedi proizvod

SAPPHIRE AMD B850 AM5 NITRO+ Ryzen R9/R7/R5, 4x DDR5 8000MHz, PCIE 5, 1x M.2 Gen5, 2x M.2 Gen4, LAN 2.5 Gbps, WIFI7, USB, ATX

MP cena:
25.870 RSD23.990 RSD

Ušteda: 1.880 RSD

Uporedi proizvod

SAPPHIRE AMD PULSE A620AM Ryzen R3/R5, 2x DDR4, PCIE 4, 1x M.2 Gen4, 1x M.2 Gen3, LAN 1 Gbps, USB, MATX

MP cena:
14.810 RSD12.990 RSD

Ušteda: 1.820 RSD

Uporedi proizvod

SAPPHIRE AMD B850M AM5 PULSE Ryzen R9/R7/R5, 4x DDR5 7600MHz, PCIE 4.0 x16, 1x M.2 Gen5, 1x M.2 Gen4, LAN 2.5 Gbps, WIFI6, USB, Micro-ATX

MP cena:
19.400 RSD17.990 RSD

Ušteda: 1.410 RSD

Uporedi proizvod

SAPPHIRE AMD B650M-E AM5 Ryzen R9/R7/R5, 2x DDR5 7600MHz, PCIe 4.0 x16, 1x M.2 Gen5, 1x M.2 Gen4, LAN 2.5 Gbps, Micro-ATX

MP cena:
15.040 RSD13.990 RSD

Ušteda: 1.050 RSD

Uporedi proizvod

ASUS PRIME B760M-PLUS matična ploča

ASUS PRIME B760M-PLUS matična ploča predstavlja savršeno rešenje za korisnike koji traže stabilnost, performanse i fleksibilnost. Sa podrškom za Intel procesore 12. i 13. generacije, ova ploča omogućava optimalno korišćenje resursa, bilo da je reč o poslu ili gejmingu. Njena Micro ATX forma pruža mogućnost lakog uklapanja u različite kućišta, čime se postiže visoka funkcionalnost i estetski dizajn.

Napredna podrška za memoriju

Opremljena sa četiri DIMM slota, ASUS PRIME B760M-PLUS podržava do 192 GB DDR4 memorije, što omogućava korisnicima da maksimalno iskoriste kapacitet i brzinu memorijskih modula. Pored toga, podržava Intel Extreme Memory Profile (XMP), čime korisnici mogu lako overklokovati memoriju za dodatne performanse. Ova karakteristika čini matičnu ploču pogodnom za zahtevne aplikacije i multitasking.

Nadogradnja i povezivanje

ASUS PRIME B760M-PLUS dolazi sa fleksibilnim opcijama povezivanja, uključujući više PCIe i SATA portova za dodatne uređaje, kao i Realtek 2.5Gb Ethernet za brže umrežavanje. Sa raznovrsnim USB portovima, uključujući USB 10Gbps, ova matična ploča omogućava lako povezivanje sa raznim perifernim uređajima, čime se povećava ukupna produktivnost sistema. Kompatibilnost sa modernim tehnologijama čini ovu ploču budućom investicijom.

Specifikacija	Vrednost
Tip procesora	Intel
Podnožje	Intel® 1700
Čipset	Intel® B760
Format ploče	Micro ATX
Podržana memorija	DDR4
Memorija	4 x DIMM slots, max. 192GB
Slotovi za proširenje	1 x PCIe 4.0 x16 slot, 1 x PCIe 4.0 x1 slot
Interni konektori	1 x 4-pin CPU Fan header, 1 x 24-pin Main Power konektor
Mrežna karta	1 x Realtek 2.5Gb Ethernet
Zvučna karta	Realtek 7.1 Surround Sound High Definition Audio CODEC

Opis proizvoda je informativnog karaktera. Trudimo se da svi podaci budu tačni i ažurni, ali su moguće nenamerne greške. Za potvrdu specifikacije i dodatne informacije, slobodno nas kontaktirajte pre kupovine.

Kako biste ocenili ovaj proizvod na skali od 1 do 5?

Imate pitanje?

Postavite pitanje i dobićete odgovor brzo.

Model

PRIME B760M-PLUS

CPU

Intel^® Socket LGA1700 for Intel^® Core™ 14th & 13th Gen Processors, Intel^®Core™ 12th Gen, Pentium^® Gold and Celeron^® Processors*
Supports Intel^® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
* Refer to www.asus.com for CPU support list.
** Intel^® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Intel^® Socket LGA1700 for Intel^® Core™ 14th & 13th Gen Processors, Intel^®Core™ 12th Gen, Pentium^® Gold and Celeron^® Processors*
Supports Intel^® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
* Refer to www.asus.com for CPU support list.
** Intel^® Turbo Boost Max Technology 3.0 support depends on the CPU types.

Chipset

Intel^® B760 Chipset

Memory

4 x DIMM slots, max. 192GB, DDR5
7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
ASUS Enhanced Memory Profile II (AEMP II)
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/.
* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
4 x DIMM slots, max. 192GB, DDR5
7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
ASUS Enhanced Memory Profile II (AEMP II)
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/.
* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.

Graphics

1 x DisplayPort**
1 x HDMI^™port***
* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
** Supports max. 4K@60Hz as specified in DisplayPort 1.4.
*** Supports 4K@60Hz as specified in HDMI 2.1.
1 x DisplayPort**
1 x HDMI^™port***
* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
** Supports max. 4K@60Hz as specified in DisplayPort 1.4.
*** Supports 4K@60Hz as specified in HDMI 2.1.

Expansion Slots

Intel^® Core^TM Processors (14th & 13th & 12th Gen)*
1 x PCIe 4.0 x16 slot
Intel^® B760 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)
1 x PCIe 4.0 x1 slot
- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.

Storage

Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*
Intel^® Core^TM Processors (14th & 13th & 12th Gen)
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
Intel^®B760 Chipset
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports
* Intel^® Rapid Storage Technology supports SATA RAID 0/1/5/10.

Ethernet

1 x Realtek 2.5Gb Ethernet
ASUS LANGuard

USB

Rear USB (Total 6 ports)
2 x USB 10Gbps ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
Front USB (Total 8 ports)
1 x USB 5Gbps connector ((supports USB Type-C^®)
1 x USB 5Gbps headers support 2 additional USB 5Gbps ports
3 x USB 2.0 header support 5 additional USB 2.0 ports
* USB Type-C^® power delivery output: max. 5V/3A
Rear USB (Total 6 ports)
2 x USB 10Gbps ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
Front USB (Total 8 ports)
1 x USB 5Gbps connector (supports USB Type-C^®)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
3 x USB 2.0 headers support 5 additional USB 2.0 ports
* USB Type-C^® power delivery output: max. 5V/3A

Audio

Realtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback"
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Realtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

Back Panel I/O Ports

2 x USB 10Gbps ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
1 x DisplayPort
1 x HDMI™ port
1 x Realtek 2.5Gb Ethernet port
3 x Audio jacks
1 x PS/2 Keyboard/Mouse combo port

Internal I/O Connectors

Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
2 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
Storage related
2 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 5Gbps connector (supports USB Type-C® )
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
3 x USB 2.0 header support 5 additional USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x Aura RGB header
1 x Clear CMOS header
1 x COM Port header
1 x Front panel audio header (F_AUDIO)
1 x LPT header
1 x S/PDIF Out header
1 x SPI TPM header (14-1pin)
1 x 20-3 pin System Panel header with Chassis intrude function
Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
2 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
Storage related
2 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 5Gbps connector (supports USB Type-C® )
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
3 x USB 2.0 headers support 5 additional USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x Aura RGB header
1 x Clear CMOS header
1 x COM Port header
1 x Front panel audio header (F_AUDIO)
1 x LPT header
1 x S/PDIF Out header
1 x SPI TPM header (14-1pin)
1 x 20-3 pin System Panel header with Chassis intrude function

Special Features

ASUS 5X PROTECTION III
- DIGI+ VRM (- Digital power design with DrMOS)
- ESD Guards
- LANGuard
- SafeSlot Core+
- Stainless-Steel Back I/O
ASUS Q-Design
- Q-DIMM
- Q-LED Core
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink
- VRM heatsink design
ASUS EZ DIY
- ProCool
AURA Sync
- AURA RGB header
- Addressable Gen 2 headers

Software Features

AASUS Exclusive Software
Armoury Crate
- AURA Creator
- AURA Sync
- Fan Xpert 2+
- Power Saving
- Two-Way AI Noise Cancelation
AI Suite 3
- Digi+ VRM
- PC Cleaner
ASUS CPU-Z
Norton 360 Deluxe (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
ASUS Exclusive Software
Armoury Crate
- AURA Creator
- AURA Sync
- Fan Xpert 2+
- Power Saving
- Two-Way AI Noise Cancelation
AI Suite 3
- Digi+ VRM
- PC Cleaner
ASUS CPU-Z
Norton 360 Deluxe (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode

BIOS

128 Mb Flash ROM, UEFI AMI BIOS

Manageability

WOL by PME, PXE

Accessories

Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x M.2 Rubber Package
1 x Screw package for M.2 SSD
Documentation
1 x Quick start guide
