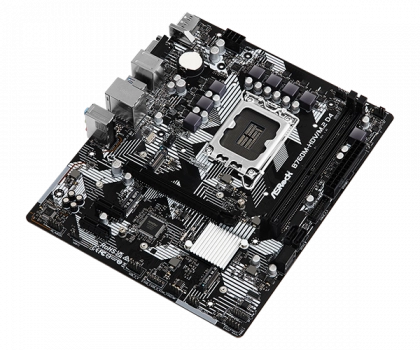

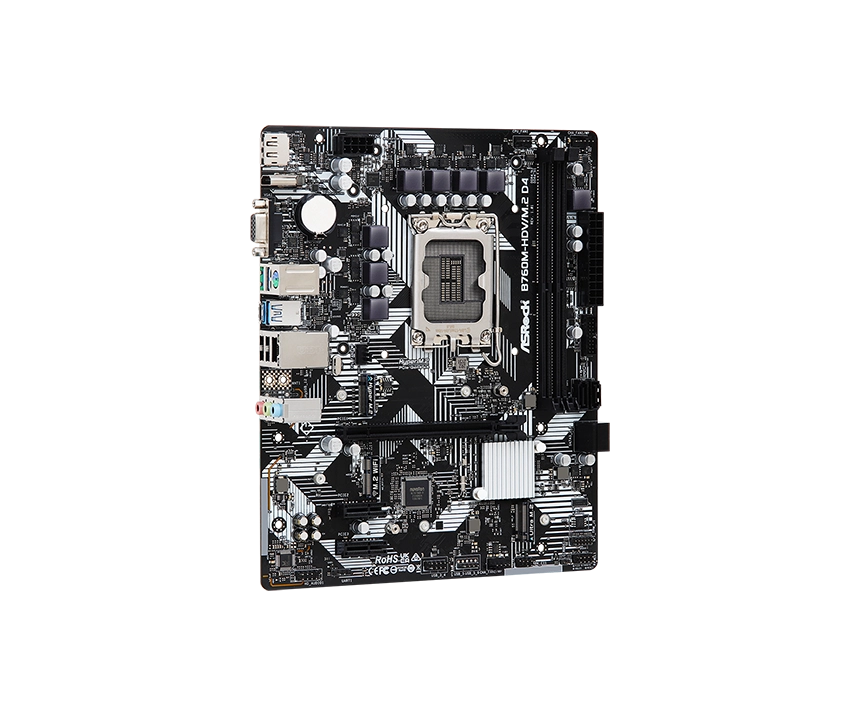

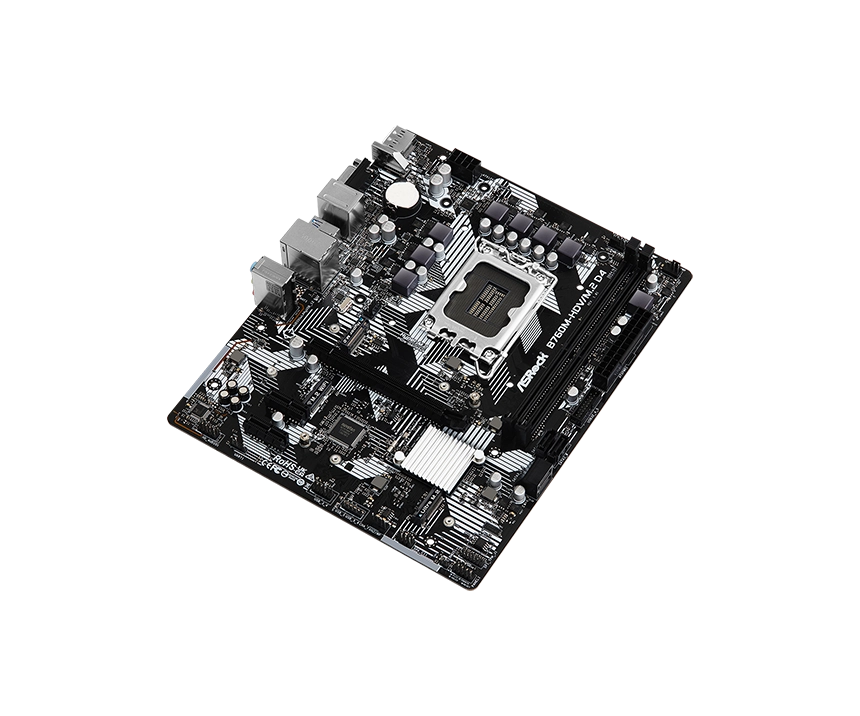

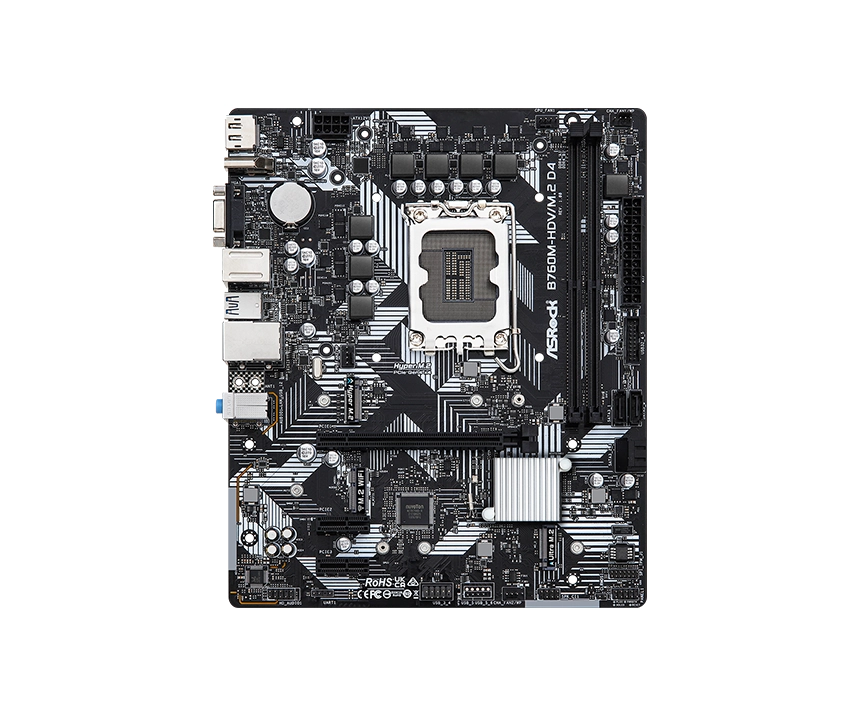

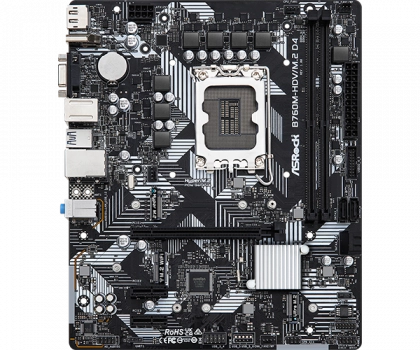

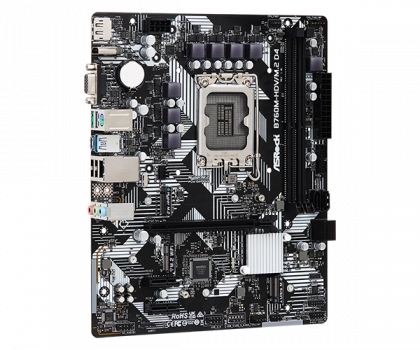

MB s1700 ASROCK B760M-HDV/M.2 D4 - Visoke performanse za moderne potrebe

MB s1700 ASROCK B760M-HDV/M.2 D4 predstavlja izuzetnu matičnu ploču koja se odlikuje podrškom za Intel 1700 procesore uz Intel B760 čipset. Ova ploča je dizajnirana da zadovolji zahteve najnovijih aplikacija, omogućavajući brz i efikasan rad. Njena napredna arhitektura garantuje stabilne performanse, pružajući savršenu osnovu za razne upravljačke sisteme ili gaming konfiguracije.

Fleksibilnost memorijskog sistema

Opremljena sa dva DDR4 memorijska slota, MB s1700 ASROCK B760M-HDV/M.2 D4 omogućava korisnicima da iskoriste maksimalnu memoriju do 64GB pri različitim brzinama, uključujući overclock opcije. Sa podrškom za Dual-channel režim, ova matična ploča osigurava optimalne performanse, čime se poboljšava brzina obrade podataka i smanjuje latencija, što je ključno za zahtevne aplikacije i igre.

Kompatibilnost i povezivanje

Ova matična ploča nudi raznovrsne opcije za povezivanje, uključujući više PCI Express slotova, SATA i M.2 interfejse, što omogućava lako proširenje i prilagođavanje prema potrebama korisnika. Osim toga, ugrađeni audio sistem i podrška za gigabitnu mrežu dodatno proširuju upotrebljivost, kao i mogućnost RAID konfiguracija, pružajući korisnicima sveobuhvatna rešenja za skladištenje podataka.

Specifikacija	Vrednost
Procesorsko ležište (socket)	Intel 1700
Čipset	Intel B760
Tip memorije	DDR4
Memorijski slotovi	2x DDR4
Maksimalna ukupna memorija	64GB
PCI Express x16 slot	1x PCI Express 4.0 (x16 mode)
Mreža	1x 10/100/1.000Mbps (Gigabit ethernet)
Broj kanala	8 (7.1)
Format	microATX
Dimenzije	244mm x 210mm

Opis proizvoda je informativnog karaktera. Trudimo se da svi podaci budu tačni i ažurni, ali su moguće nenamerne greške. Za potvrdu specifikacije i dodatne informacije, slobodno nas kontaktirajte pre kupovine.

Kako biste ocenili ovaj proizvod na skali od 1 do 5?

Imate pitanje?

Postavite pitanje i dobićete odgovor brzo.

Unique Feature

Rock-Solid Durability
- 5+1+1 Power Phase
EZ Update
- ASRock Auto Driver Installer
CPU

- Supports 13^th Gen & 12^th Gen Intel^® Core™ Processors (LGA1700)
- Supports Intel^® Hybrid Technology
- Supports Intel^® Turbo Boost Max 3.0 Technology
- Supports Intel^® Thermal Velocity Boost (TVB)
- Supports Intel^® Adaptive Boost Technology (ABT)
Chipset

- Intel^® B760
Memory

- Dual Channel DDR4 Memory Technology
- 2 x DDR4 DIMM Slots
- Supports DDR4 non-ECC, un-buffered memory up to 5333+(OC)*
- Supports ECC UDIMM memory modules (operate in non-ECC mode)
- Max. capacity of system memory: 64GB*
- Supports Intel^® Extreme Memory Profile (XMP) 2.0

*1DPC 1R Up to 5333+ MHz (OC), 3200 MHz Natively.
1DPC 2R Up to 4400+ MHz (OC), 3200 MHz Natively.
BIOS

- 128Mb AMI UEFI Legal BIOS with GUI support
Graphics

- Intel^® Xe Graphics Architecture (Gen 12)
- 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz
- 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz
- 1 x D-Sub, supports max. resolution up to Full HD (1920x1080) 60Hz

*Intel^® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.
Audio

- 7.1 CH HD Audio (Realtek ALC887/897 Audio Codec)
LAN

- Gigabit LAN 10/100/1000 Mb/s
- Realtek 8111H
Slots

CPU:
- 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode*
Chipset:
- 2 x PCIe 3.0 x1 Slots (PCIE2 and PCIE3)*
- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module

*Supports NVMe SSD as boot disks
Storage

CPU:
- 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
Chipset:
- 1 x Ultra M.2 Socket (M2_2, Key M), supports type 2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes*
- 4 x SATA3 6.0 Gb/s Connectors**

*Supports Intel^® Volume Management Device (VMD)
Supports NVMe SSD as boot disks

**If M2_2 is occupied by a SATA-type M.2 device, SATA3_3 will be disabled.
RAID

- Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
USB

- 1 x USB 3.2 Gen1 Type-C (Rear)
- 5 x USB 3.2 Gen1 Type-A (3 Rear, 2 Front)
- 5 x USB 2.0 (2 Rear, 3 Front)
* All USB ports support ESD Protection
Connector

- 1 x SPI TPM Header
- 1 x Chassis Intrusion and Speaker Header
- 1 x CPU Fan Connector (4-pin)*
- 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**
- 2 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)***
- 1 x 24 pin ATX Power Connector
- 1 x 8 pin 12V Power Connector
- 1 x Front Panel Audio Connector
- 2 x USB 2.0 Headers (Support 3 USB 2.0 ports)
- 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)

*CPU_FAN1 supports the fan power up to 1A (12W).

**CPU_FAN2/WP supports the fan power up to 2A (24W).
***CHA_FAN1~2/WP support the fan power up to 2A (24W).
CPU_FAN2/WP and CHA_FAN1~2/WP can auto detect if 3-pin or 4-pin fan is in use.

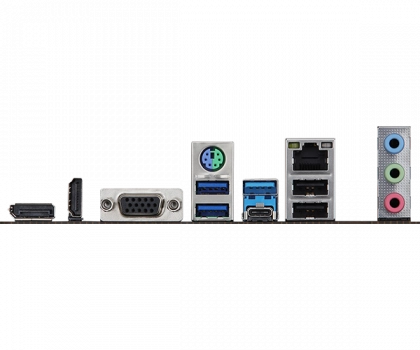

Rear Panel I/O

- 2 x Antenna Mounting Points
- 1 x PS/2 Mouse/Keyboard Port
- 1 x D-Sub Port
- 1 x HDMI Port
- 1 x DisplayPort 1.4
- 1 x USB 3.2 Gen1 Type-C Port
- 3 x USB 3.2 Gen1 Type-A Ports
- 2 x USB 2.0 Ports
- 1 x RJ-45 LAN Port
- HD Audio Jacks: Line in / Front Speaker / Microphone
Software and UEFI

Software
- ASRock Motherboard Utility (A-Tuning)
- ASRock XFast LAN
UEFI
- ASRock EZ Mode
- ASRock Full HD UEFI
- ASRock My Favorites in UEFI
- ASRock Auto Driver Installer
- ASRock Instant Flash
- ASRock Easy RAID Installer

*These utilities can be downloaded from ASRock Live Update & APP Shop.

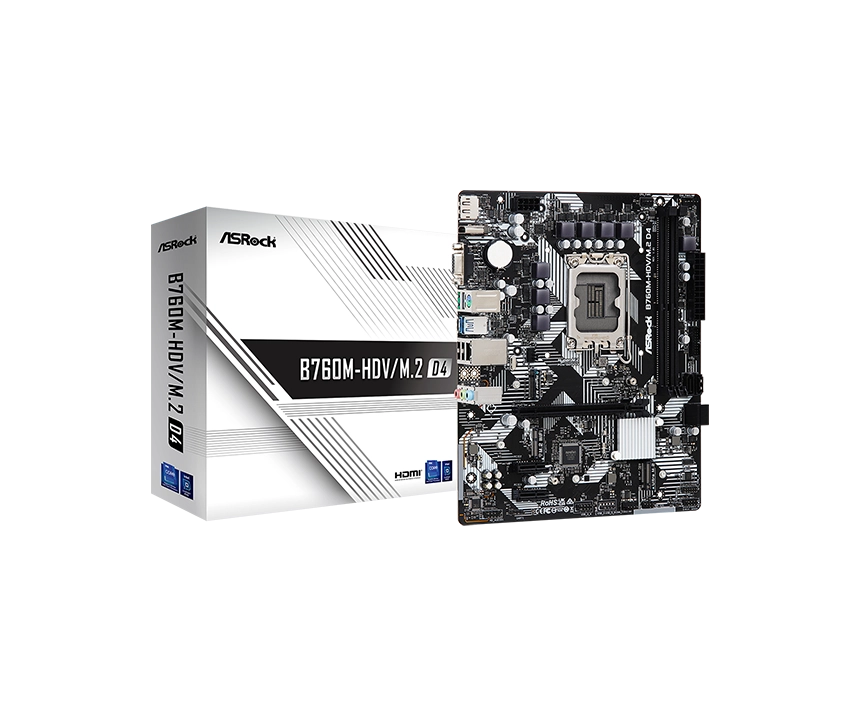

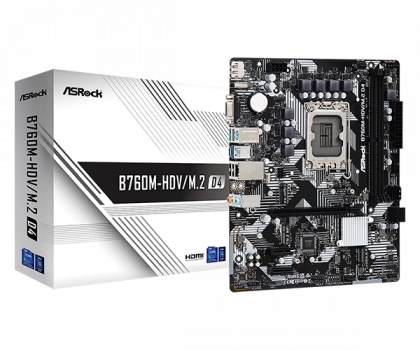

Accessories

- 1 x User Manual
- 1 x I/O Shield
- 2 x SATA Data Cables
- 3 x Screws for M.2 Sockets
Form Factor

- Micro ATX Form Factor: 9.6-in x 7.9-in, 24.4 cm x 20.1 cm
OS

- Microsoft^® Windows^® 10 64-bit / 11 64-bit
Certifications

- FCC, CE
- ErP/EuP ready (ErP/EuP ready power supply is required)
