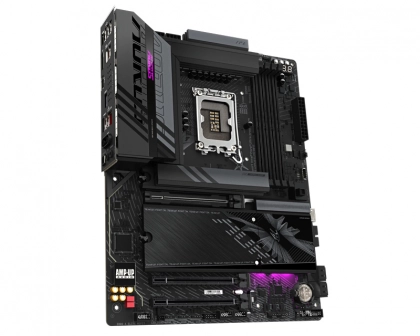

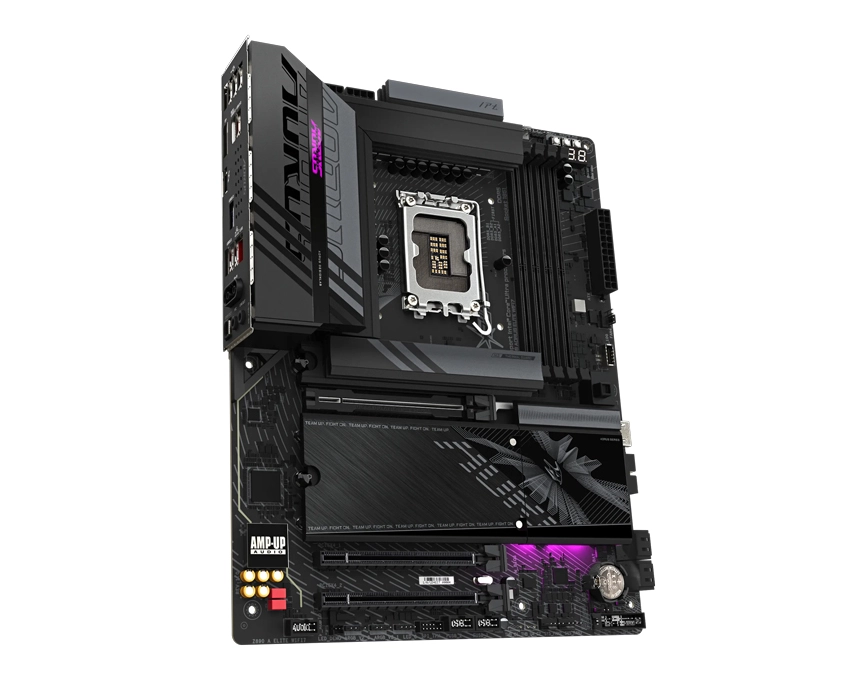

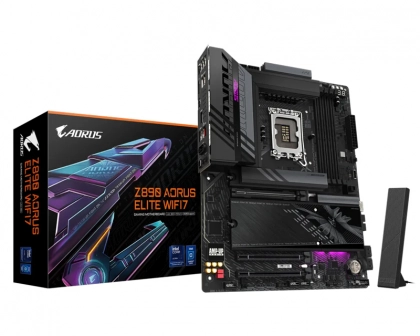

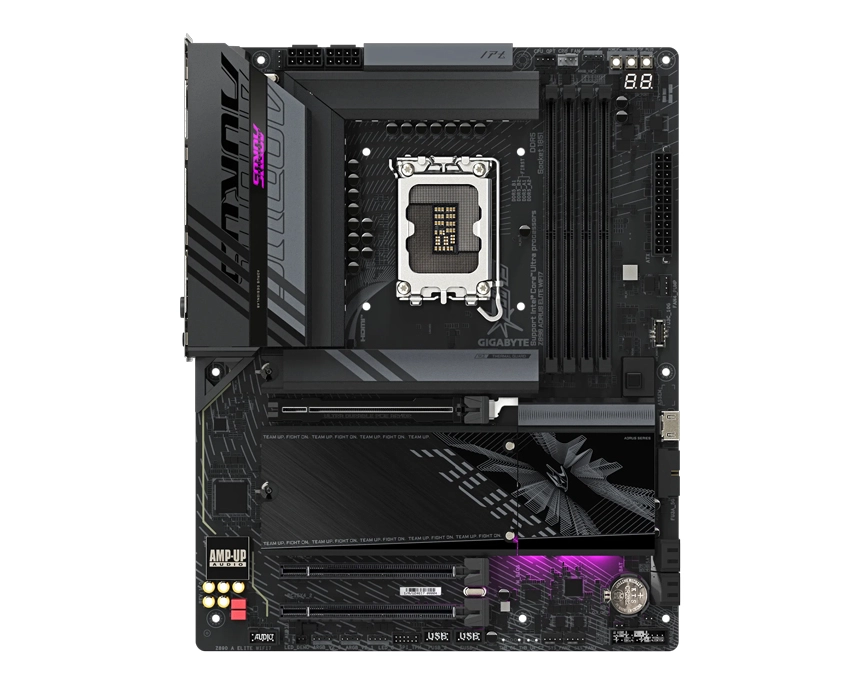

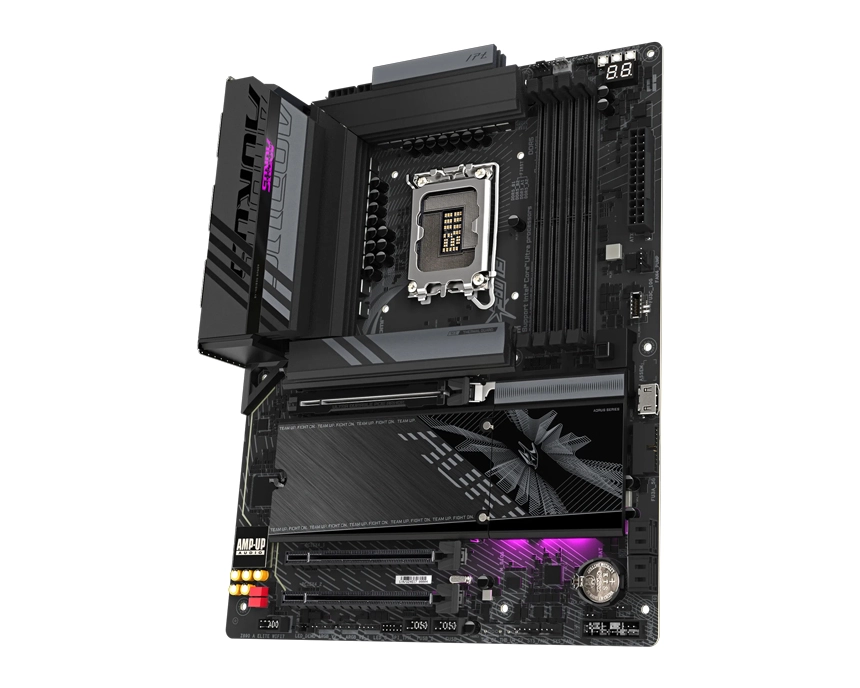

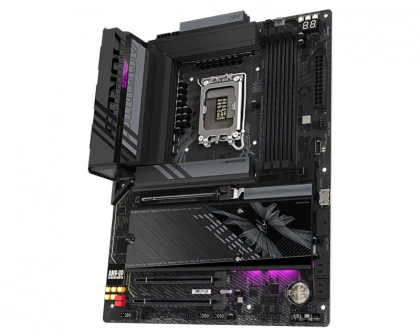

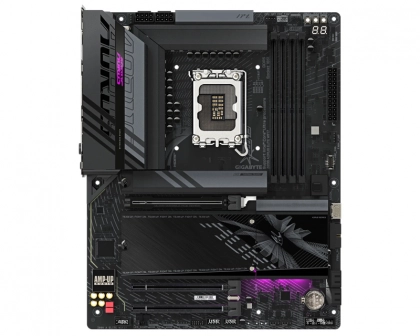

GIGABYTE Z890 A ELITE WIFI7 matična ploča predstavlja idealno rešenje za korisnike koji traže superiorne performanse u radu sa najnovijim Intel Core Ultra procesorima. Ova matična ploča je optimizovana za maksimalnu iskorišćenost procesora, pružajući izuzetnu brzinu obrade i stabilnost koja je neophodna za zahtevne aplikacije i igrice. Sa podrškom za DDR5 RAM do 256GB, korisnici mogu očekivati fluidan rad uz mogućnost multitaskinga na najvišem nivou.
Integrisani Wi-Fi 7 obezbeđuje brze i stabilne bežične konekcije, a višestruki USB portovi, uključujući USB Type-C i Thunderbolt 4, omogućava vam da povežete različite uređaje bez ograničenja. Osim toga, matična ploča podržava simultano povezivanje do tri displeja putem DisplayPort 2.1 i HDMI konektora, što omogućava izuzetno bogato vizuelno iskustvo, idealno za profesionalce koji se bave grafikom ili fanove intenzivnih gejming sesija.
GIGABYTE Z890 A ELITE WIFI7 nudi izvanrednu fleksibilnost u izboru memorije zahvaljujući podršci za Unbuffered ECC i non-ECC UDIMM memorijske module, kao i Extreme Memory Profile (XMP) opcije. Sa četiri DDR5 DIMM slota, korisnici mogu lako prilagoditi kapacitet memorije u skladu sa svojim potrebama. Proširivački slotovi uključuju PCI Express 5.0, omogućavajući dodatne opcije za proširenje sistema po potrebi, što čini ovu matičnu ploču savršenim izborom za buduće nadogradnje.
| Specifikacija | Vrednost |
|---|---|
| USB 2.0 portovi | 4 |
| USB portovi | 9 |
| Visina | 10 cm |
| Širina | 30 cm |
| Dužina | 20 cm |
| Težina | 1 kg |
| Slotovi | 4 x DDR5 DIMM |
| Ekspansion slotovi | 1x PCI Express 5.0 |
| Čipset | Intel Z890 Express |
| Tip procesora | Intel Core Ultra |
Kako biste ocenili ovaj proizvod na skali od 1 do 5?
Imate pitanje?
Postavite pitanje i dobićete odgovor brzo.

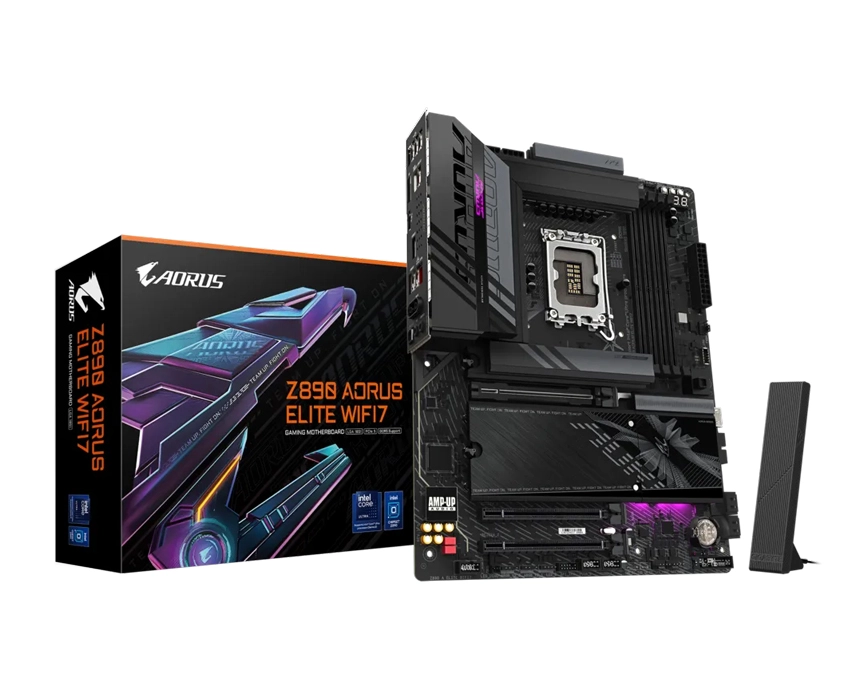

| Model | Gigabyte Z890 AORUS ELITE WIFI7 DDR5 ATX LGA1851 Matična ploča |
| Procesorsko podnožje (Socket) | Intel Socket 1851 |
| Skup čipova (Chipset) | Intel Z890 |
| Podrška za procesore | Intel Core Ultra Processors L3 cache varies with CPU |
| Tip memorije (RAM) | DDR5 |
| Broj memorijskih slotova | 4x 288-Pin DDR5 |
| Podrška za memorije | Support for DDR5 9200(O.C) / 9066(O.C) / 8933(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) / 8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 6200 / 6000 / 5800 / 5600MT/s memory modules. 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules Support CUDIMM memory module |
| Podrška za grafiku - portovi | Integrated Graphics Processor-Intel HD Graphics support: - 1 x Intel Thunderbolt 4 connector (USB4 USB Type-C port), supporting DisplayPort and Thunderbolt video outputs When a Thunderbolt monitor is installed, the maximum resolution supported is 5120x2880 60Hz with 24 bpp (single display output). When a USB4 USB Type-C monitor is installed, the maximum resolution supported is 3840x2160 240Hz (single display output). Because of the limited I/O resources of the PC architecture, the number of Thunderbolt devices that can be used is dependent on the number of the PCI Express devices being installed. (Refer to Chapter 2-6, Back Panel Connectors," for more information.) Support for DisplayPort 2.1 version and HDCP 2.3 - 1 x front HDMI port, supporting a maximum resolution of 1920x1080 30Hz Support for HDMI 1.4 version - 1 x DisplayPort, supporting a maximum resolution of 4096x2304 60Hz Support for DisplayPort 2.1 version and HDCP 2.3 |
| Slotovi za proširenja | CPU: - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: - 2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x4 (PCIEX4_1, PCIEX4_2) |
| M.2 portovi | 2x M.2 Socket 3 |
| Čuvanje podataka - portovi | CPU: - 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU) - 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU) Chipset: - 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB) - 1 x M.2 connector (Socket 3, M key, type 22110/2280 SATA and PCIe 4.0 x4 SSD support) (M2M_SB) - 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices |
| SATA portovi | 4x SATA 6Gb/s |
| LAN | Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |

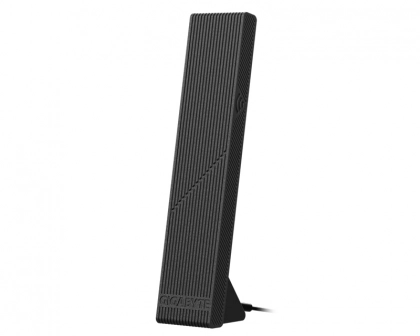

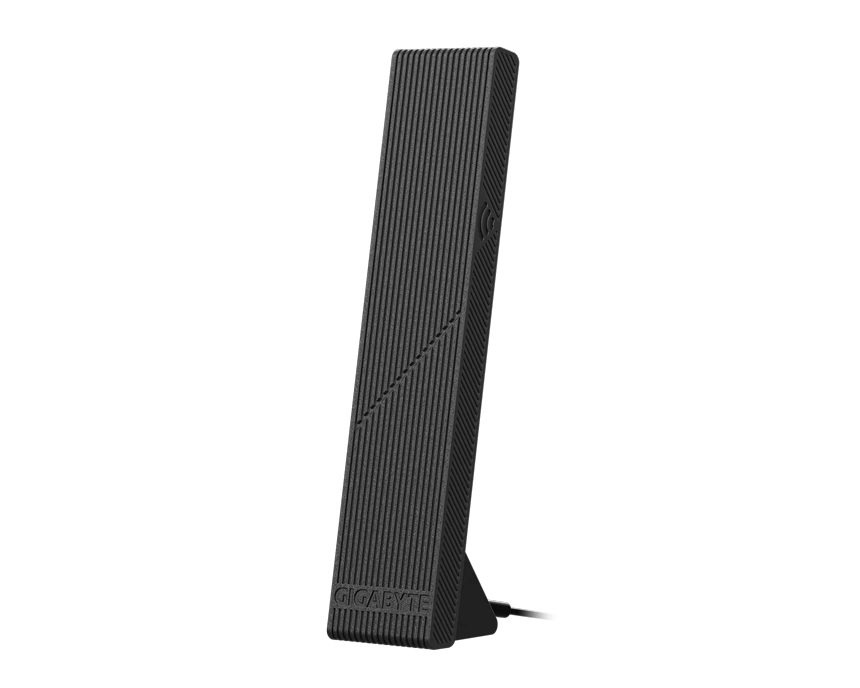

| Bežična mreža | MediaTek Wi-Fi 7 MT7925 (PCB rev. 1.0) - 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands - Support for 11be 160MHz wireless standard Realtek Wi-Fi 7 RTL8922AE (PCB rev. 1.1) - 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands - Support for 11be 160MHz wireless standard (Actual data rate may vary depending on environment and equipment.) |
| Bluetooth | 5.4 |
| Zvuk (Audio) | Realtek ALC1220 CODEC The back panel line out jack supports DSD audio. High Definition Audio 2/4/5.1/7.1-channel You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. Support for S/PDIF Out |
| USB portovi | CPU: - 1 x Intel Thunderbolt 4 (USB Type-C) ports on the back panel Support up to 40Gbps with Thunderbolt devices Support up to 20Gbps with USB4 devices Support up to 10Gbps with USB 3.2 devices Chipset: - 1 x USB Type-C port with USB 3.2 Gen 2 support, available through the internal USB header - 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel - 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header) Chipset+2 USB 2.0 Hubs: - 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) |

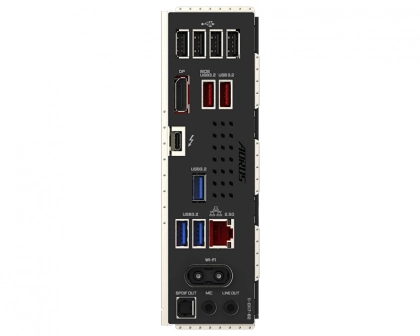

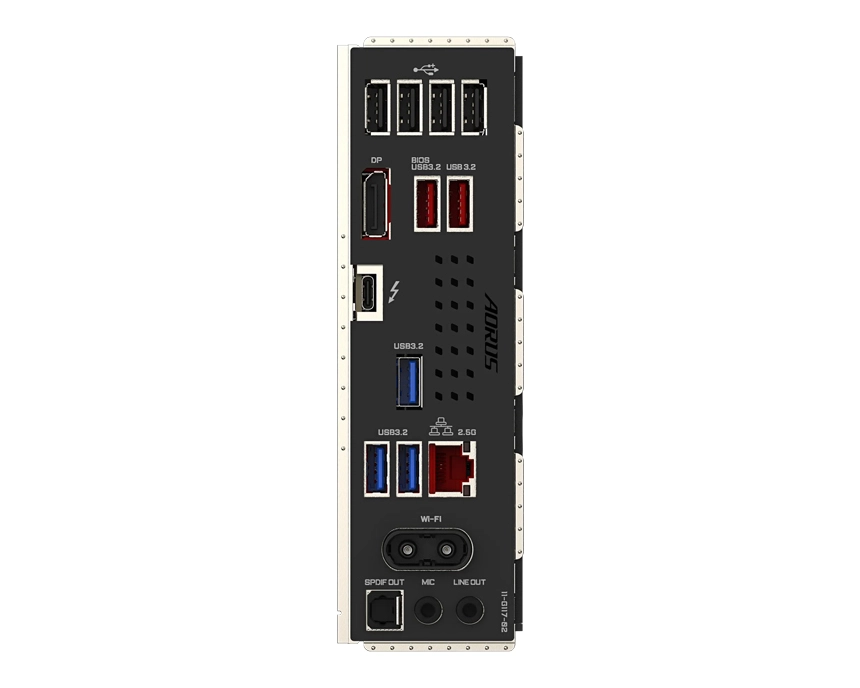

| Konektori na zadnjoj strani | 1 x Intel Thunderbolt 4 connectors (USB Type-C ports) 2 x USB 3.2 Gen 2 Type-A ports (red) 3 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 2 x antenna connectors (2T2R) 1 x DisplayPort (Note) 1 x RJ-45 port 1 x optical S/PDIF Out connector 2 x audio jacks |
| Unutrašnji konektori | 1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x CPU fan header 1 x CPU fan/water cooling pump header 3 x system fan headers 1 x system fan/water cooling pump header 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 4 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x HDMI port (Note) 1 x power button 1 x reset button 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper |
| Posebne mogućnosti | Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control Support for GIGABYTE Control Center (GCC) Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup |
| Operativni sistem | Windows 11 |
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Format | ATX |
