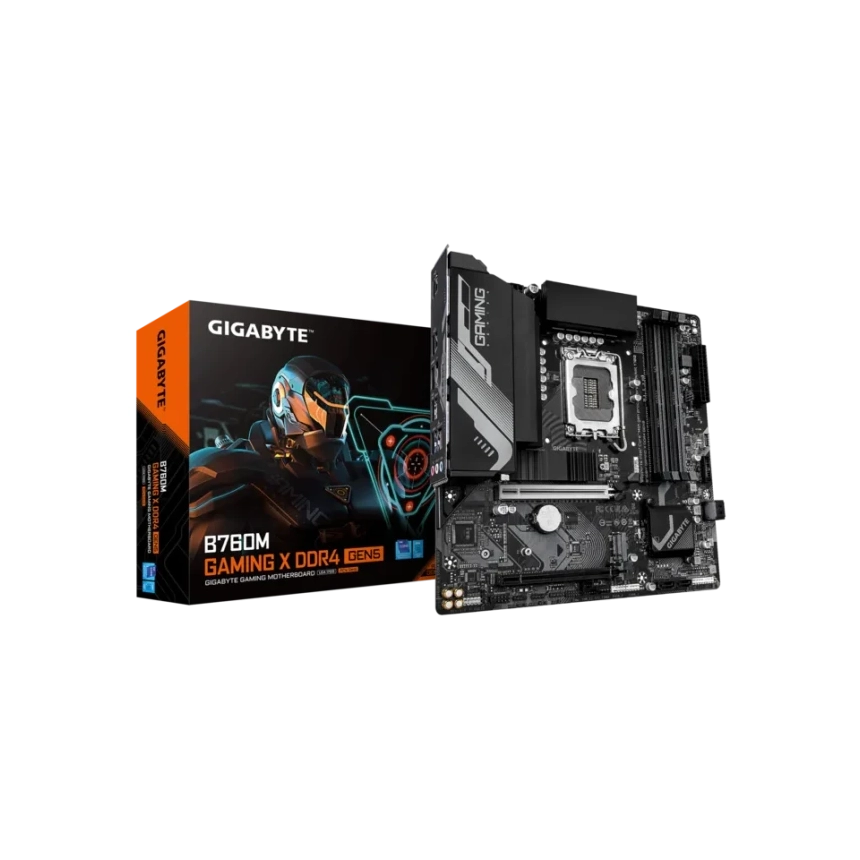

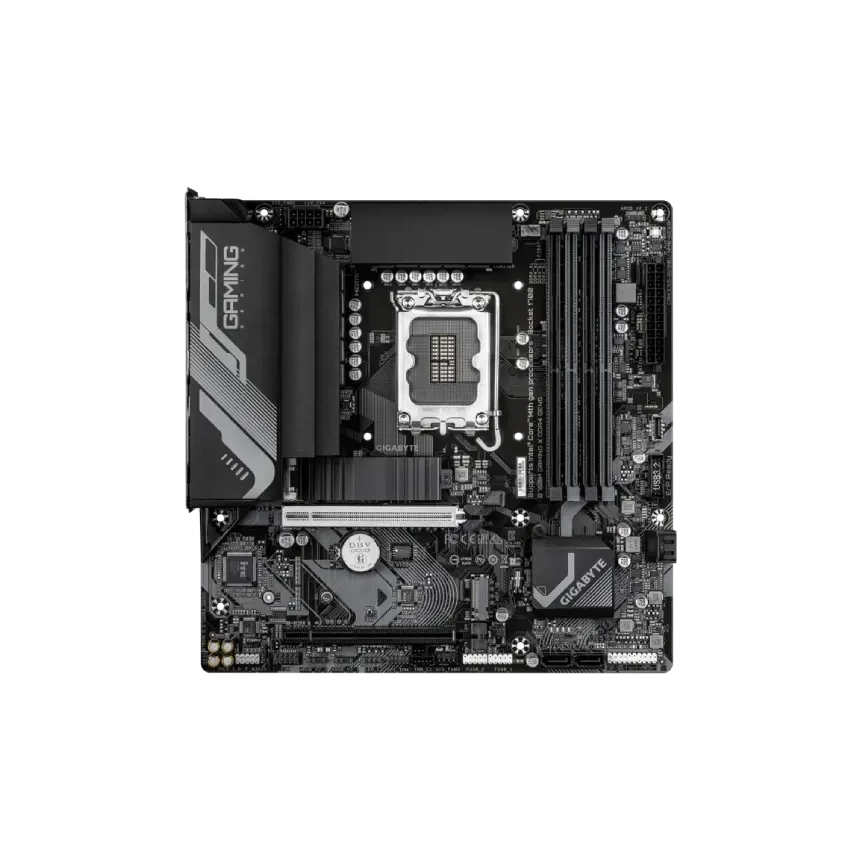

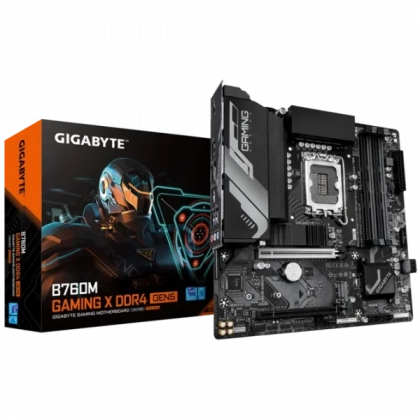

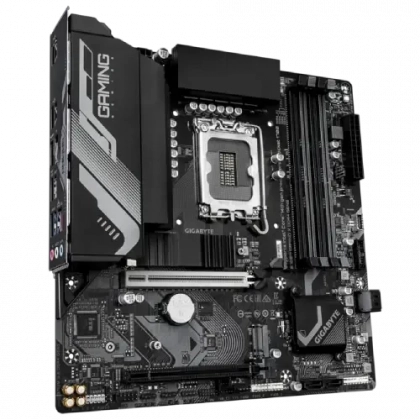

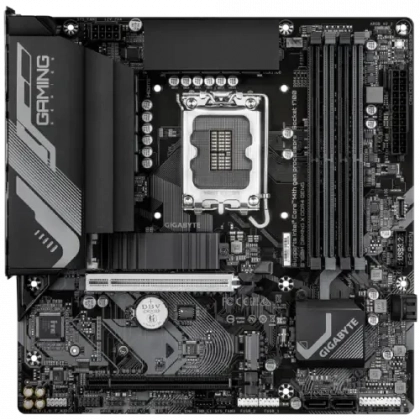

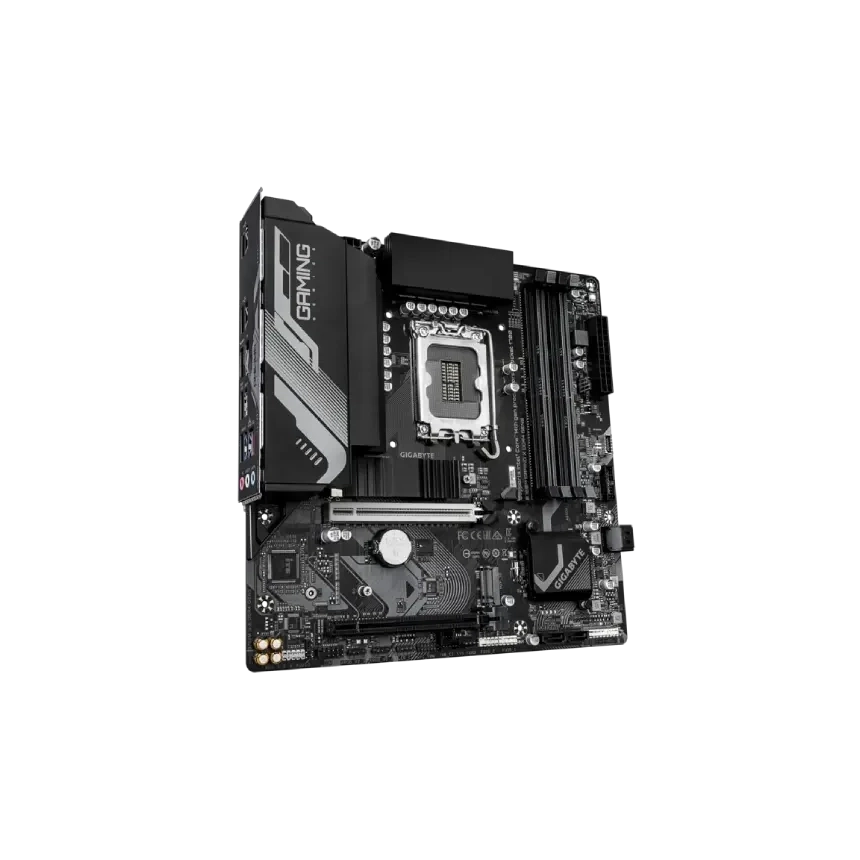

| Model | Gigabyte B760M GAMING X DDR4 GEN5 LGA1700 ATX Matična ploča |
| Socket | Intel Socket 1700 (LGA1700) |
| Skup čipova (Chipset) | Intel B760 |
| Podrška za procesore | Podrška za 14th, 13th, i 12th Generation Intel Core, Pentium Gold i Celeron Processors |
| Tip memorije (RAM) | DDR4 |
| Broj memorijskih slotova | 4x 288-Pin DDR4 |
| Podrška za memorije | Podržani DDR4 moduli brzine 5333(O.C.) / 5133(O.C.) / 5000(O.C.) / 4933(O.C.) / 4800(O.C.) / 4700(O.C.) / 4600(O.C.) / 4500(O.C.) / 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2666 / 2400 / 2133 MT/s4 x DDR4 DIMM slota sa podrškom za do 128 GB sistemske memorije (do 32 GB po jednom DIMM modulu)Dvokanalna (dual-channel) arhitektura memorijePodrška za ECC un-buffered DIMM memorijske module tipa 1Rx8 / 2Rx8 (rade u non-ECC režimu)Podrška za non-ECC un-buffered DIMM memorijske module tipa 1Rx8 / 2Rx8 / 1Rx16Podrška za memorijske module sa Extreme Memory Profile (XMP) profilom(Konfiguracija procesora i memorije može uticati na podržane tipove memorije, brzinu prenosa podataka (brzinu) i broj DRAM modula. Za više informacija pogledajte „Memory Support List“ na sajtu kompanije GIGABYTE.) |
| Podrška za grafiku - portovi | Integrated Graphics Processor-Intel HD Graphics support:- 1 x HDMI port, supporting a maximum resolution of 4096x2160 60Hz- 1 x DisplayPort, supporting a maximum resolution of 4096x2304 60Hz |
| Slotovi za proširenja | CPU:- 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.Chipset:- 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4) |
| M.2 portovi | 2x M.2 Socket 3 |
| Čuvanje podataka - portovi | CPU:- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)Chipset:- 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)- 4 x SATA 6Gb/s connectorsRAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices |
| SATA portovi | 4x SATA 6Gb/s |
| LAN | Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Zvuk (Audio) | Realtek Audio CODECHigh Definition Audio2/4/5.1/7.1-channelSupport for S/PDIF Out |
| USB portovi | Chipset:- 1 x USB Type-C port with USB 3.2 Gen 2 support, available through the internal USB header- 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)- 1 x USB 2.0/1.1 port on the back panelChipset+2 USB 2.0 Hubs:- 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) |

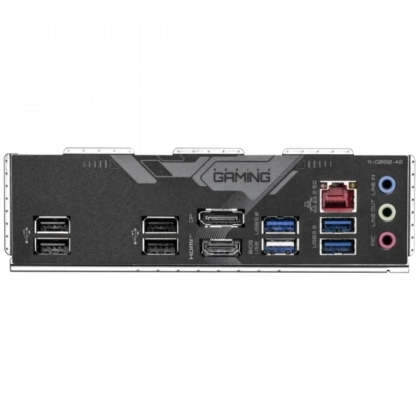

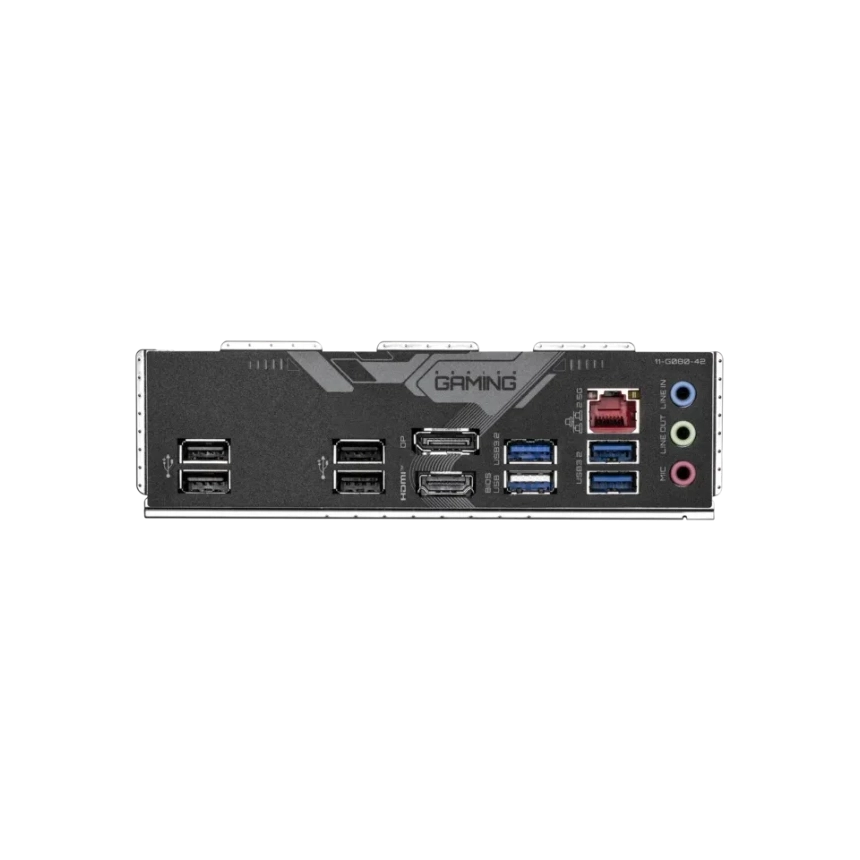

| Konektori na zadnjoj strani | 3 x USB 3.2 Gen 1 ports5 x USB 2.0/1.1 ports2 x antenna connectors (2T2R)1 x HDMI port (Note)1 x DisplayPort (Note)1 x RJ-45 port3 x audio jacks |
| Unutrašnji konektori | 1 x 24-pin ATX main power connector1 x 8-pin ATX 12V power connector1 x CPU fan header3 x system fan headers3 x addressable LED strip headers1 x RGB LED strip header2 x M.2 Socket 3 connectors4 x SATA 6Gb/s connectors1 x front panel header1 x front panel audio header1 x S/PDIF Out header1 x USB Type-C header, with USB 3.2 Gen 2 support1 x USB 3.2 Gen 1 header2 x USB 2.0/1.1 headers2 x Thunderbolt add-in card connectors1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)1 x serial port header1 x Q-Flash Plus button1 x reset jumper1 x Clear CMOS jumper |
| Posebne mogućnosti | Support for GIGABYTE Control Center (GCC)Support for Q-FlashSupport for Q-Flash PlusSupport for Smart BackupVoltage detectionTemperature detectionFan speed detectionWater cooling flow rate detectionFan fail warningFan speed control |
| Operativni sistem | Windows 10; Windows 11 |
| BIOS | 1 x 256 Mbit flashUse of licensed AMI UEFI BIOSPnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Format | Micro ATX |
| Link ka proizvodjacu | https://www.gigabyte.com/ |
