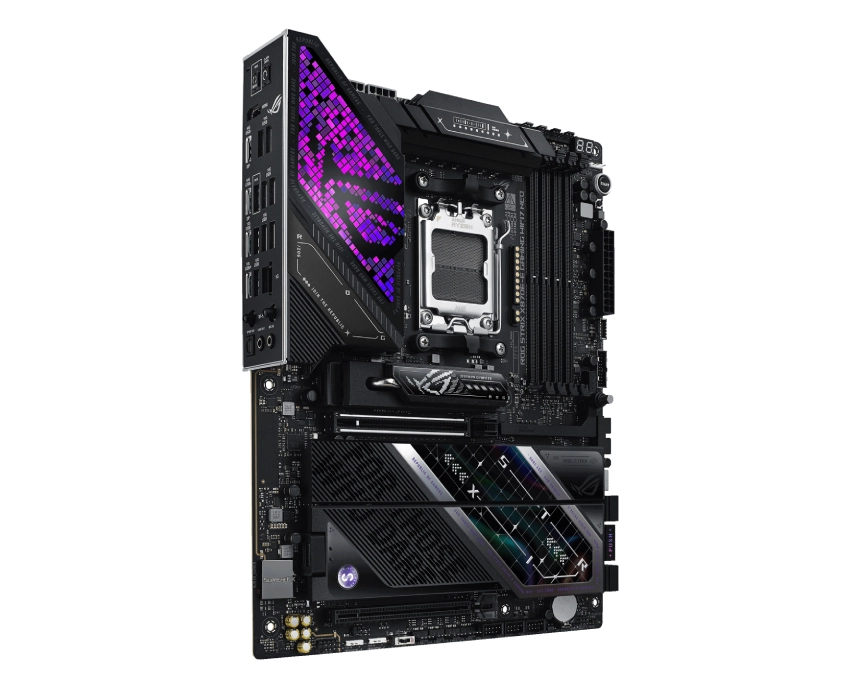

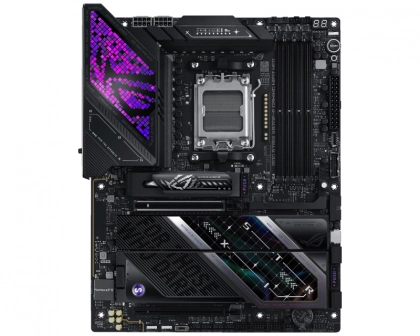

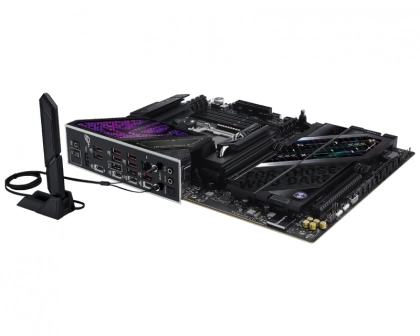

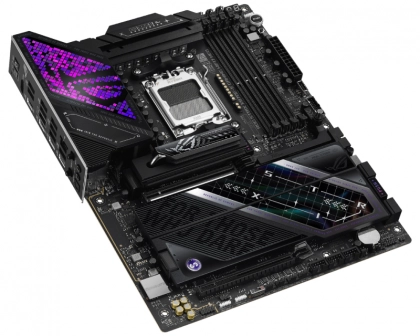

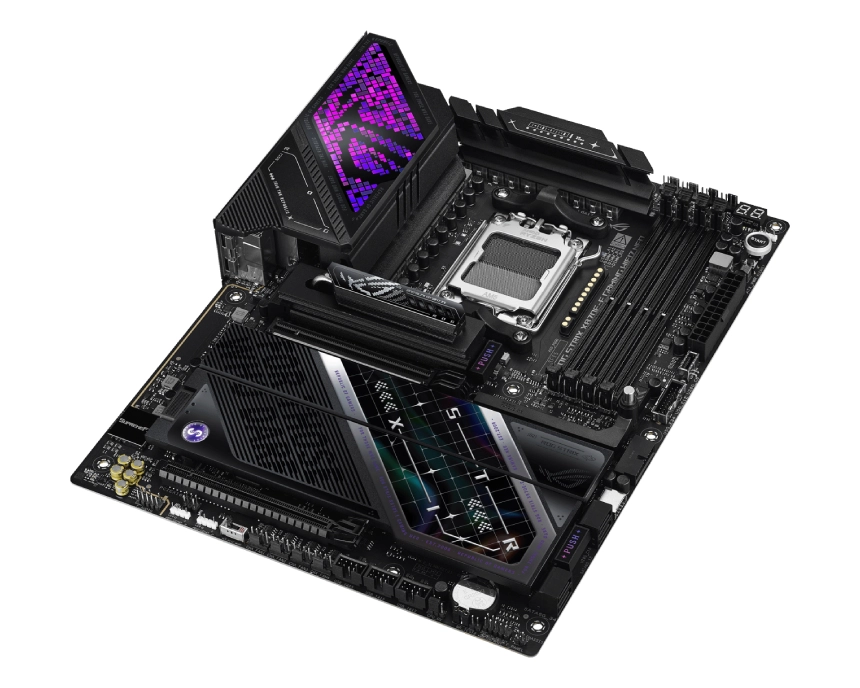

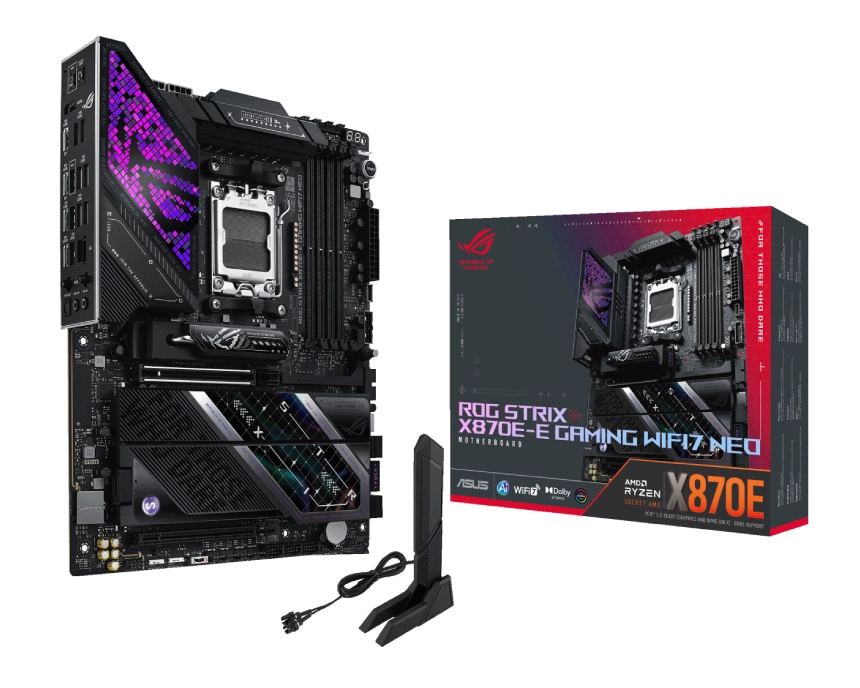

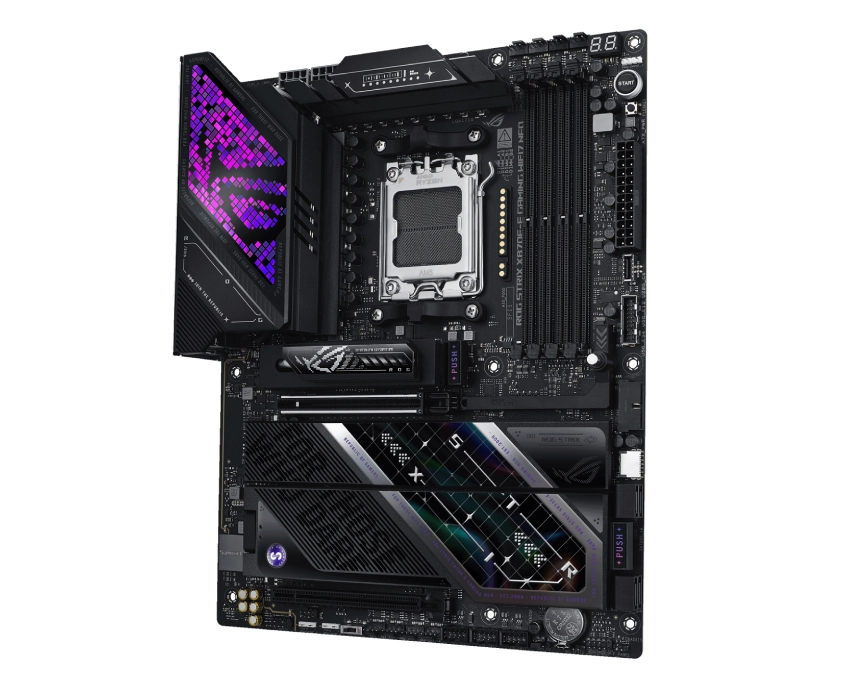

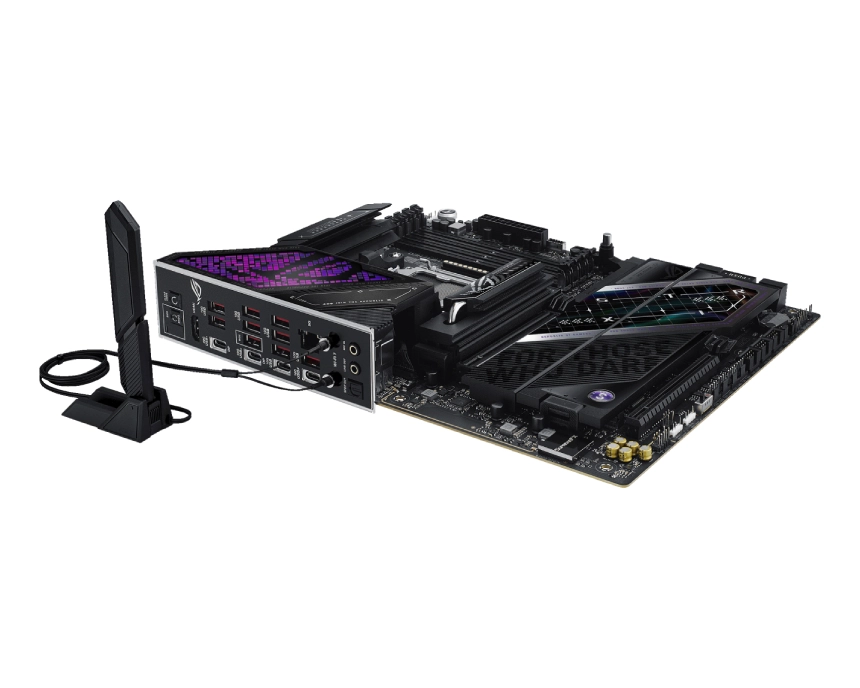

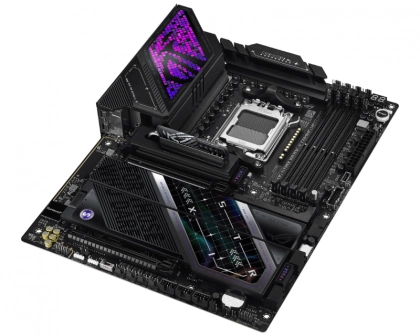

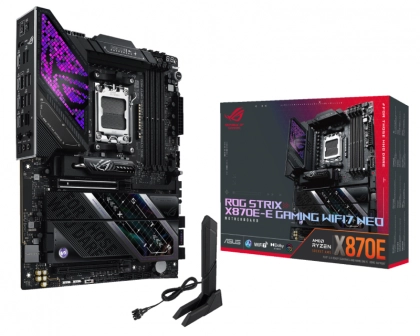

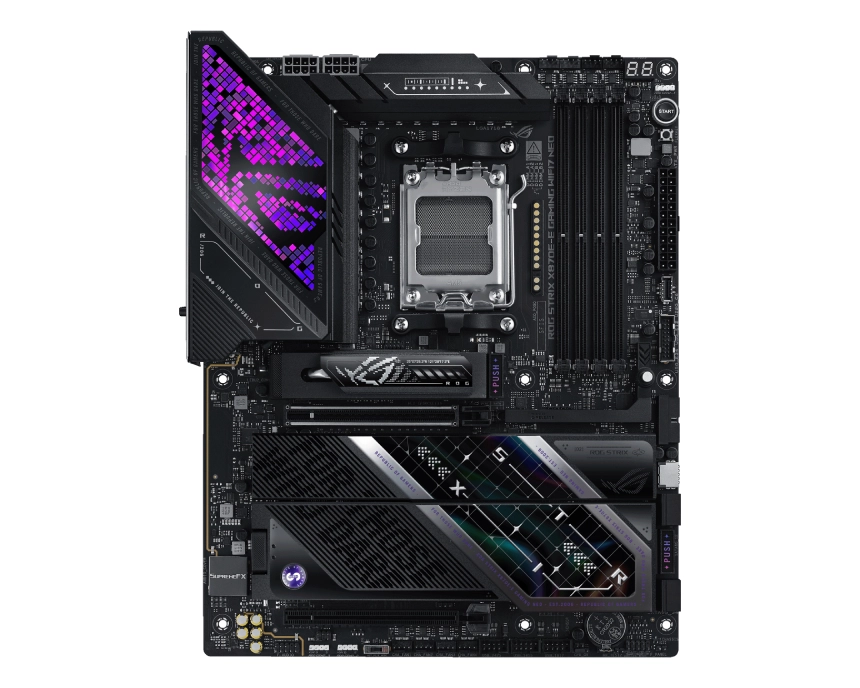

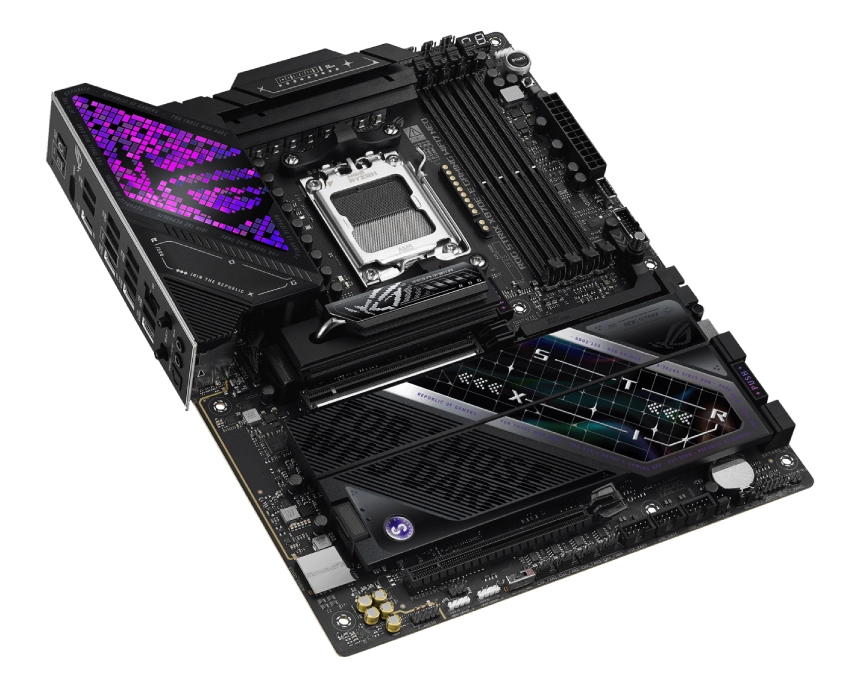

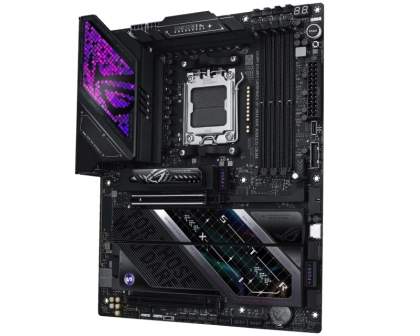

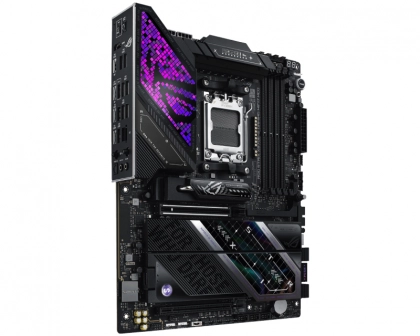

ASUS ROG STRIX X870E-E GAMING WIFI7 NEO matična ploča

AMD AM5

AMD X870E

Upotreba grafike iz procesora

DDR5

4

Podržava DDR5 memorije do 9.600+MT/s (O.C.)

256GB

Podrška za Unbuffered ECC memoriju, Dvokanalni (Dual-channel) režim rada memorije, Podrška za non-ECC UDIMM memory, Podrška za AMD EXTended Profiles for Overclocking (EXPO), ASUS Enhanced Memory Profile (AEMP), NitroPath DRAM Technology, DIMM Fit, DIMM Fit Pro

1x PCI Express 4.0 (x4 mode), 1x PCI Express 4.0 (x8/x4 mode) / 5.0 (x16 mode)

2

4

SATA III 6Gbps

5

3x 2280 (podrška za PCIe 4.0 x4 mod), 2x 2242 / 2260 / 2280 (podrška za PCIe 5.0 x4 mod i PCIe 4.0 x4 mod)

RAID 0, RAID 1, RAID 10, RAID 5

5GBase-T (Gigabit)

Realtek

Da

MediaTek Wi-Fi 7 MT7927

Da

8 (7.1)

Realtek ALC4080 Codec, ROG SupremeFX

Audio Shielding, Jack-detection, Multi-streaming, Premium audio capacitors, Audio Cover, Podrška za S/PDIF izlaz, Savitech SV3H712 AMP, Supports up to 32-Bit/384 kHz playback, Gold-plated jacks, High quality 120dB SNR stereo playback output and 110dB SNR recording input, Impedance sense for front and rear headphone outputs, Front Panel MIC Jack-retasking, Podrška za LHDC high-definition bluetooth audio codec, transmission with up to 400 kbps bitrate and 24-bit/192 kHz

Da preko USB-C

1

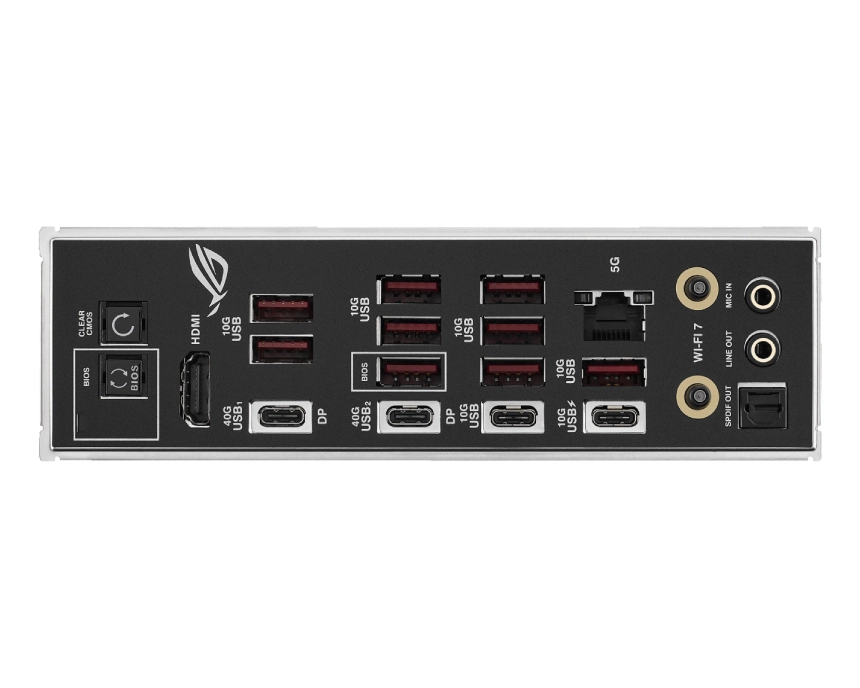

1x HDMI 2.1

13

4

9x USB 10Gbps (3.2 Gen 2)

2x USB 40Gbps (USB 4), 2x USB 10Gbps (3.2 Gen 2)

1

2x 3.5mm, 1x S/PDIF optički

BIOS Flashback taster, 1x Clear CMOS dugme, 1x Wi-Fi Module

1 x 24-pin Main Power connector, 2 x 8-pin +12V CPU Power connector

2 x podrška za 4 USB 5Gbps porta, 3 x podrška za 6 USB 2.0 porta

2 x podrška za 1 USB 20Gbps port

1x Front panel header

4 x SATA 6Gb/s ports, 1 x Thermal Sensor header, 1 x Chassis Intrusion header, 1 x CPU Over Voltage jumper, 1 x Start button, 1 x AIO Q-Connector, 5 x M.2 slots (Key M), 1 x 10-1 pin Front Panel System header, 1 x Alteration PCIe mode switch

Za iskorišćavanje određenih internih konektora potrebni su dodatni bracket-i ili priključci na kućištu

AURA Sync, LANGuard, UEFI Bios, Armoury Crate, Extreme Engine Digi+, FlexKey, Asynchronous Clock, ASUS Thermal Solution, ASUS EZ DIY, AI Cache Boost, AMD RAIDXpert2 Technology

ATX

305mm x 244mm

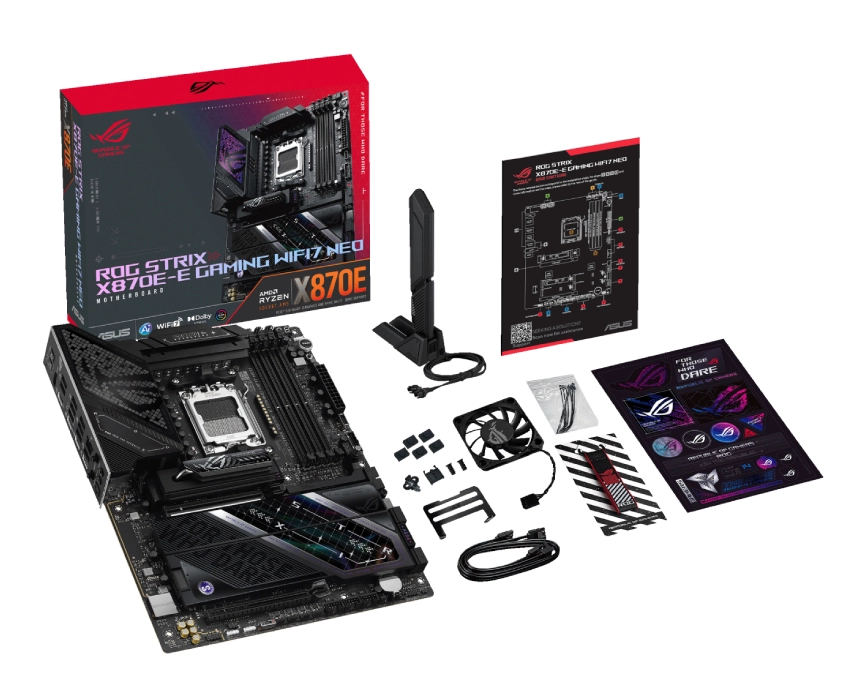

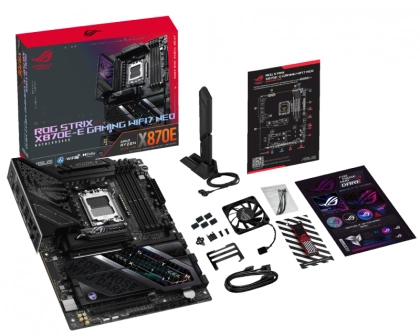

2 x SATA 6Gb/s kabl, 1 x Quick Start Guide, 1 x ASUS WiFi Q-Antenna, 1 x DDR5 fan holder, 1 x ROG assistant fan (60mm), 1 x Screw package for cooling kit, 1 x M.2 Q-Latch package, 1 x M.2 Q-Slide package, 1 x ROG key chain, 1 x ROG Strix stickers

36 meseci
