Podrška za Unbuffered ECC memoriju, Dvokanalni (Dual-channel) režim rada memorije, Podrška za non-ECC UDIMM memory, Podrška za AMD EXTended Profiles for Overclocking (EXPO), ASUS Enhanced Memory Profile (AEMP), NitroPath DRAM Technology, DIMM Fit, DIMM Fit Pro
2x 2280 (podrška za PCIe 4.0 x4 mod), 1x 2280 / 22110 (podrška za PCIe 5.0 x4 mod), 1x 2242 / 2260 / 2280 (podrška za PCIe 5.0 x4 mod)
RAID
RAID 0, RAID 1, RAID 10, RAID 5
Mreža
Žična mreža (LAN)
5GBase-T (Gigabit)
Model
Realtek
Wi-Fi
Da
Wi-Fi standard
MediaTek Wi-Fi 7 MT7925
Bluetooth
Da
Bluetooth verzija
5.4
Audio
Broj kanala
8 (7.1)
Model
Realtek ALC4080 Codec, ROG SupremeFX
Napomena
Jack-detection, Multi-streaming, Premium audio capacitors, Audio Cover, Podrška za S/PDIF izlaz, SupremeFX Shielding, Savitech SV3H712 AMP, Supports up to 32-Bit/384 kHz playback, High quality 120dB SNR stereo playback output and 110dB SNR recording input, Impedance sense for front and rear headphone outputs, Front Panel MIC Jack-retasking

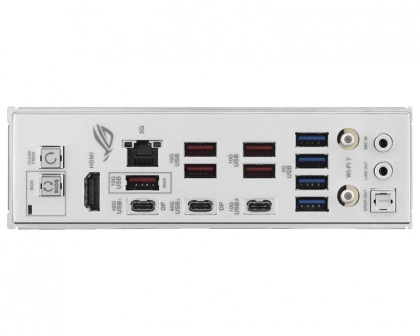

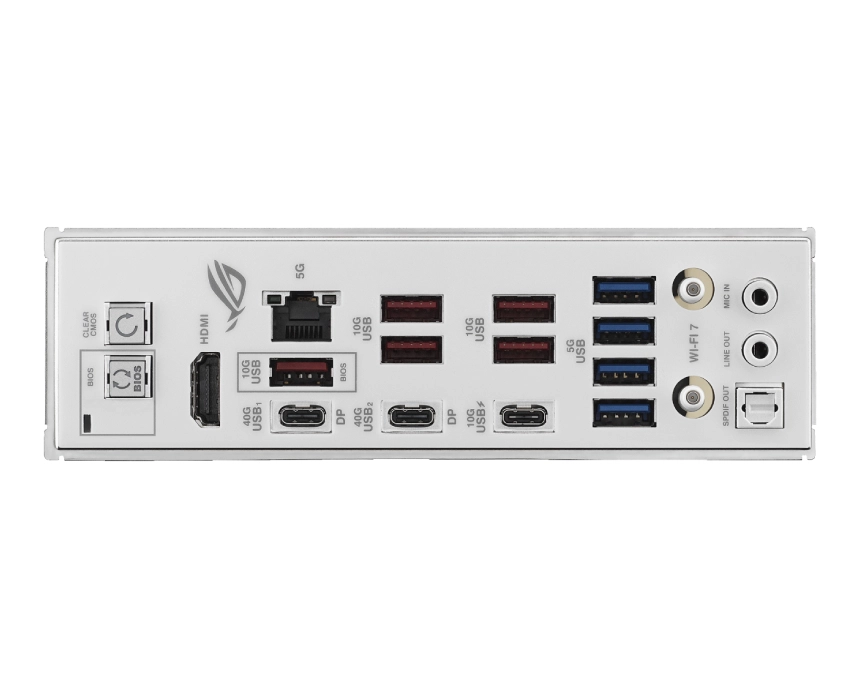

Priključci na zadnjem panelu
DisplayPort priključci
Da preko USB-C
Broj HDMI priključaka
1
HDMI priključci
1x HDMI 2.1
Ukupno USB priključaka
8
Ukupno USB-C priključaka
3
USB-A priključci
5x USB 10Gbps (3.2 Gen 2)
USB-C priključci
1x USB 10Gbps (3.2 Gen 2), 2x USB 40Gbps (USB 4)
RJ-45 (LAN)
1
Audio
2x 3.5mm, 1x S/PDIF optički
Ostali priključci
BIOS Flashback taster, 1x Wi-Fi Module
Unutrašnji priključci
Naponski priključci
1 x 24-pin Main Power connector, 2 x 8-pin +12V CPU Power connector
USB-A
2 x podrška za 4 USB 5Gbps porta, 3 x podrška za 6 USB 2.0 porta
USB-C
1 x podrška za 1 USB 20Gbps port, 1 x podrška za 1 USB 5Gbps port
Audio
1x Front panel header
Ostali priključci
4 x SATA 6Gb/s ports, 1 x 4-pin AIO Pump header, 1 x 4-pin CPU OPT Fan header, 1 x 4-pin CPU Fan header, 1 x Thermal Sensor header, 1 x Chassis Intrusion header, 1 x CPU Over Voltage jumper, 1 x Start button, 1 x AIO Q-Connector, 1 x 10-1 pin Front Panel System header, 4 x M.2 slots (Key M), 5 x 4-pin Chassis Fan headers, 3 x Addressable RGB Gen 2 headers, 1 x Alteration PCIe mode switch
Napomena
Za iskorišćavanje određenih internih konektora potrebni su dodatni bracket-i ili priključci na kućištu
Ostale karakteristike
Podržane tehnologije
AURA Sync, DIGI+VRM, VRM heatsink design, UEFI Bios, AI Overclocking, SafeSlot, M.2 heatsink, Armoury Crate, Q-Design, ROG CPU-Z, FlexKey, DriverHub, ASUS Thermal Solution, ASUS EZ DIY, AI Cache Boost, ProCool II, Dolby Atmos, AMD RAIDXpert2 Technology
Fizičke karakteristike
Format
ATX
Dimenzije
305mm x 244mm

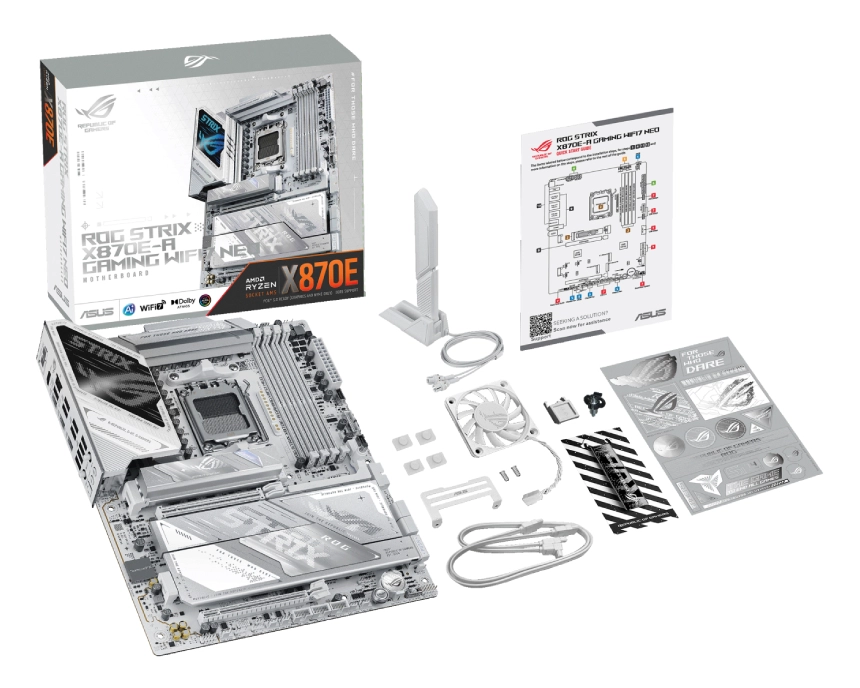

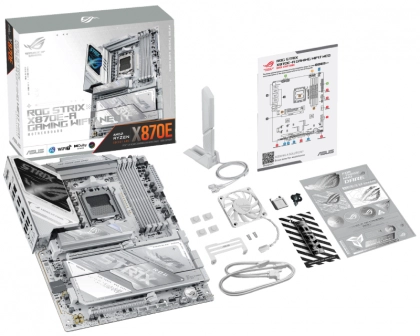

Pakovanje
2 x SATA 6Gb/s kabl, 1 x Quick Start Guide, 1 x ASUS WiFi Q-Antenna, 1 x DDR5 fan holder, 1 x ROG assistant fan (60mm), 1 x Screw package for cooling kit, 1 x M.2 Q-Latch package, 1 x M.2 Q-Slide package, 1 x ROG key chain, 1 x ROG Strix stickers, 4 x M.2 rubbers
Reklamacioni period
Reklamacioni period
36 meseci
