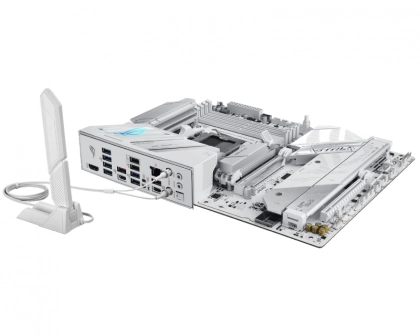

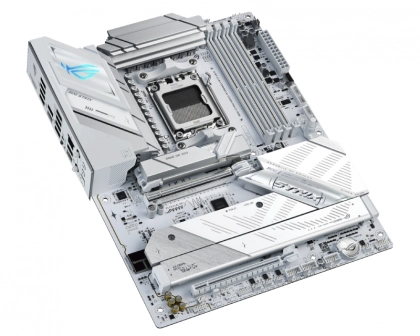

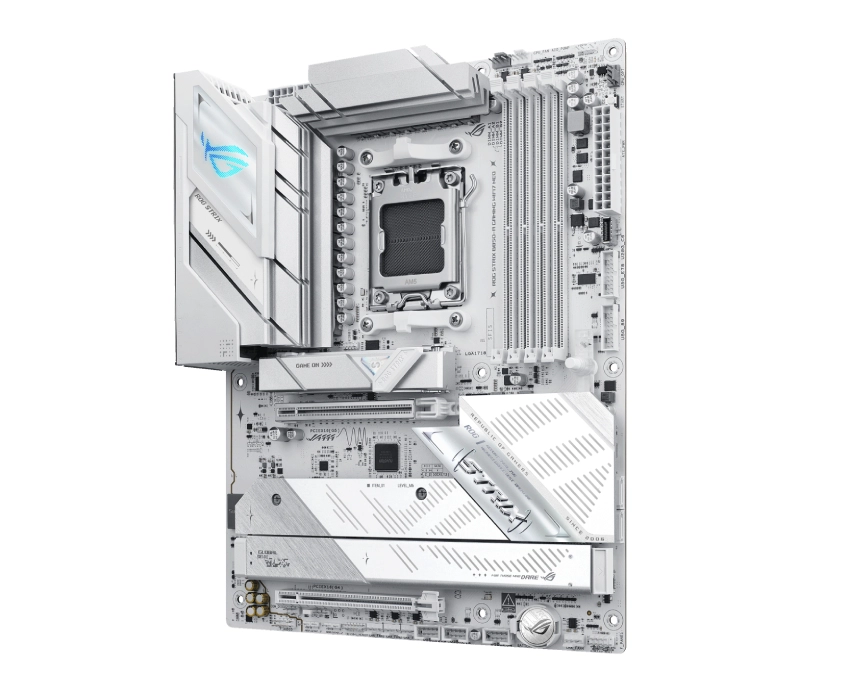

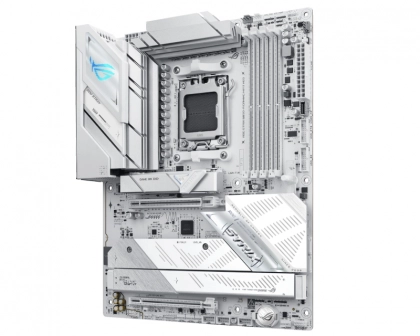

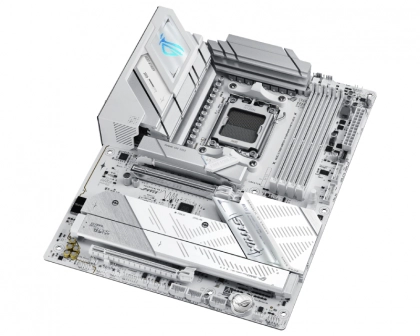

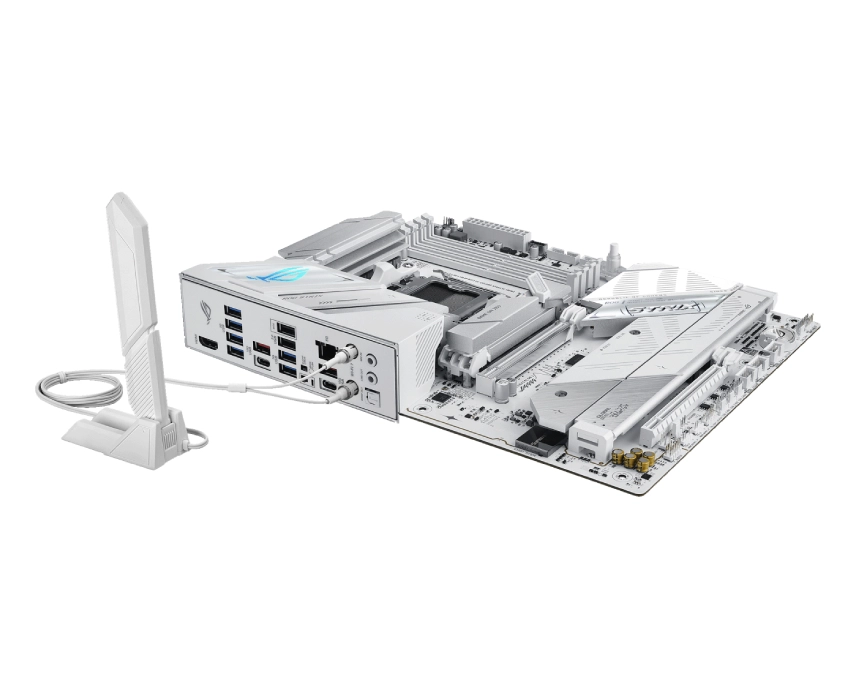

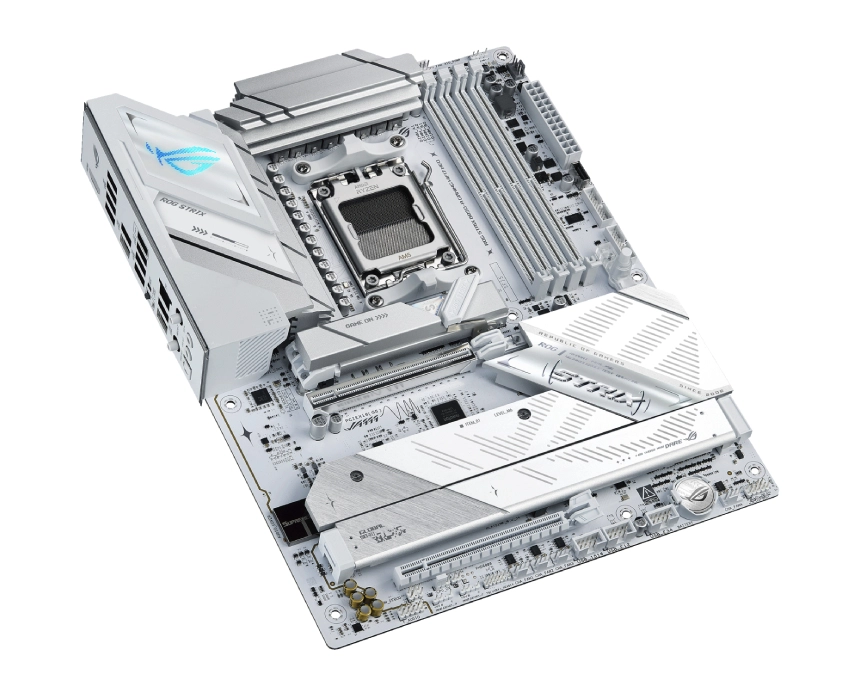

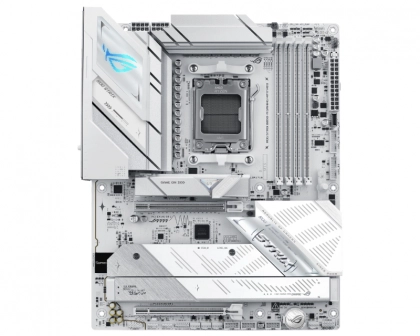

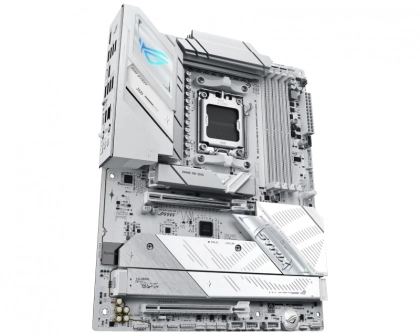

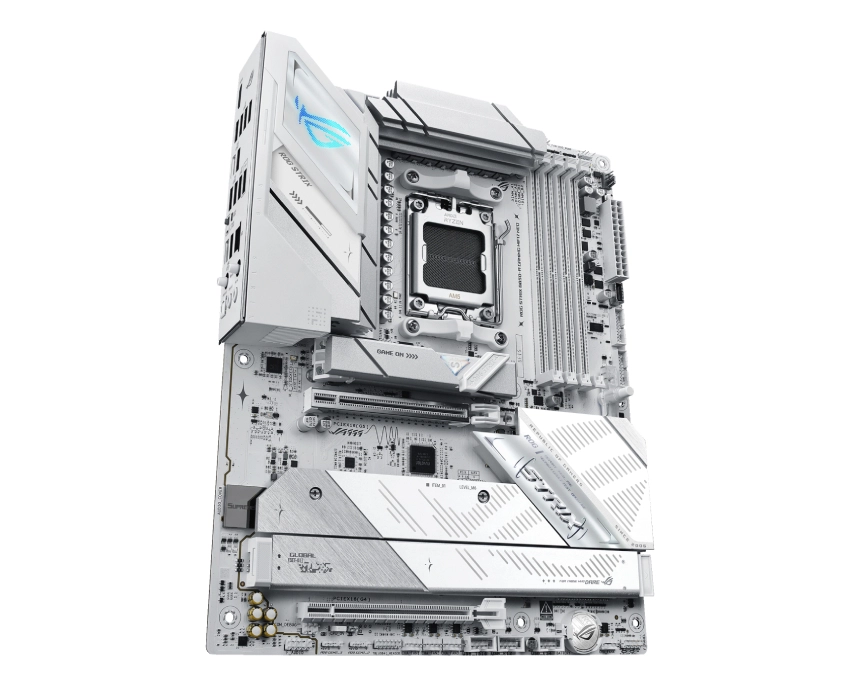

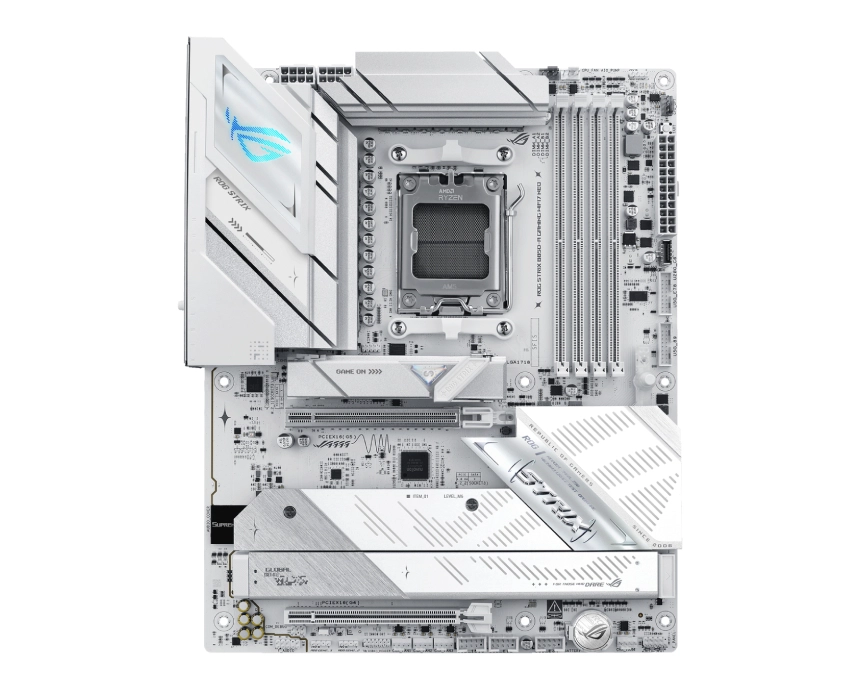

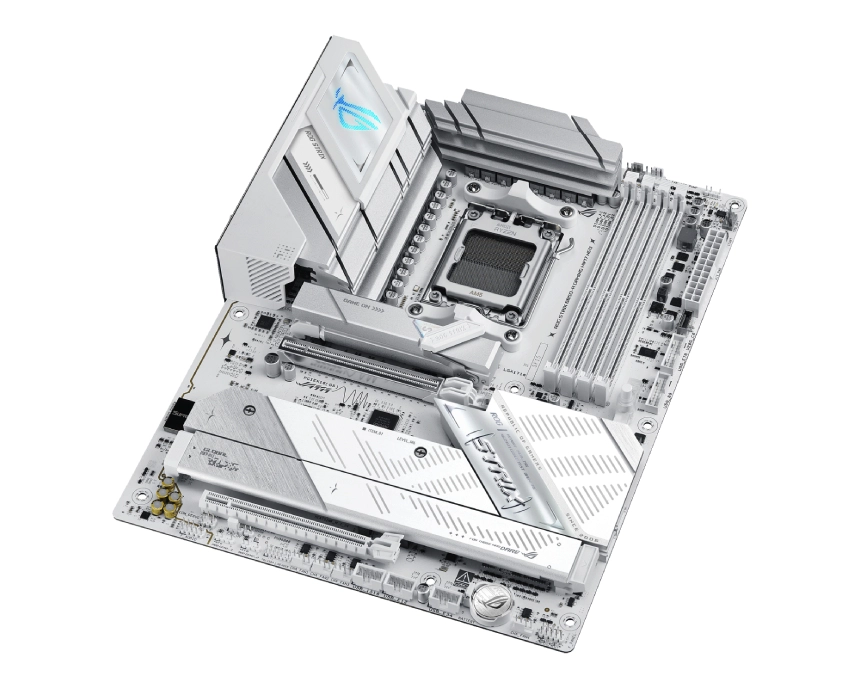

ASUS ROG STRIX B850-A GAMING NEO matična ploča

AMD AM5

AMD B850

Upotreba grafike iz procesora

DDR5

4

Podržava DDR5 memorije do 9.000MT/s (O.C.)

256GB

Podrška za Unbuffered ECC memoriju, Dvokanalni (Dual-channel) režim rada memorije, Podrška za non-ECC UDIMM memory, Podrška za AMD EXTended Profiles for Overclocking (EXPO), ASUS Enhanced Memory Profile (AEMP)

1x PCI Express 5.0 (x16 mode), 1x PCI Express 5.0 (x16 mode) / 4.0 (x8/x4 mode), 1x PCI Express 4.0 (x16/x4 mode), 1x PCI Express 5.0 (x16 mode) / 4.0 (x4 mode)

4

2

SATA III 6Gbps

4

1x 2242 / 2260 / 2280 (podrška za PCIe 5.0 x4 mod), 3x 2280 (podrška za PCIe 4.0 x4 / x2 mod)

RAID 0, RAID 1, RAID 10, RAID 5

5GBase-T (Gigabit)

Realtek

Da

Wi-Fi 7 (802.11be)

Da

5.4

8 (7.1)

Realtek ALC4080 Codec

High Definition, Jack-detection, Multi-streaming, Premium audio capacitors, Dedicated audio PCB layers, Audio Cover, Podrška za S/PDIF izlaz, SupremeFX Shielding, Savitech SV3H712 AMP, Supports up to 32-Bit/384 kHz playback, High quality 120dB SNR stereo playback output and 110dB SNR recording input, Dolby Atmos, Front Panel MIC Jack-retasking

1

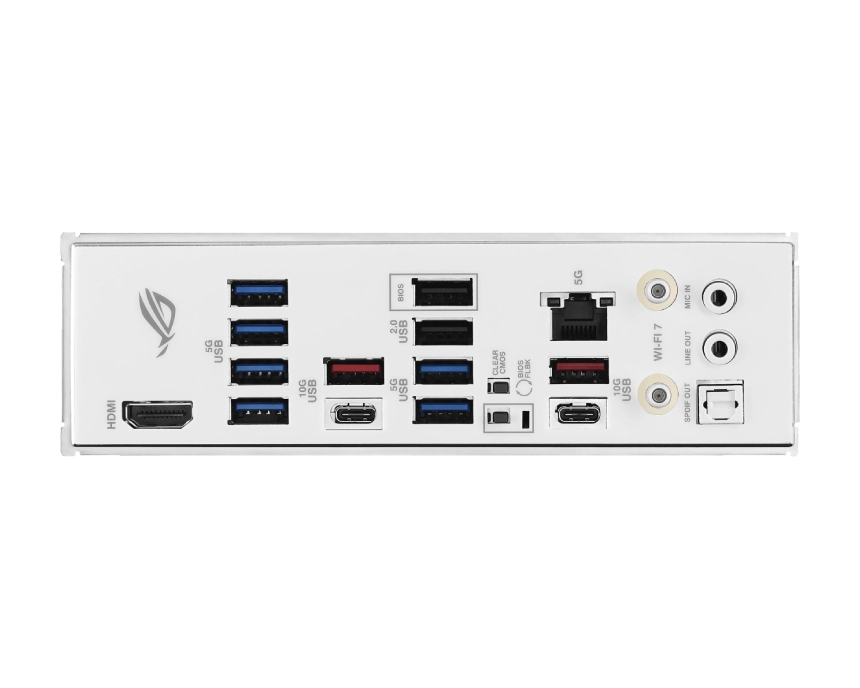

1x HDMI

12

2

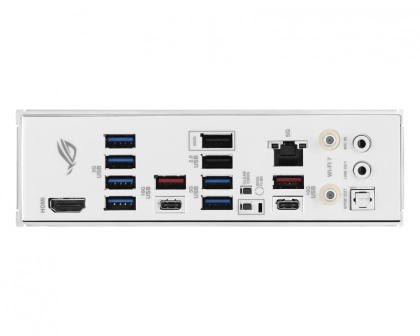

2x USB 10Gbps (3.2 Gen 2), 2x USB 2.0, 6x USB 5Gbps (3.2 Gen 1)

2x USB 10Gbps (3.2 Gen 2)

1

2x 3.5mm, 1x S/PDIF optički

BIOS Flashback taster, 1x Clear CMOS dugme, 1 x Wi-Fi Module

1 x 24-pin Main Power connector, 2 x 8-pin +12V CPU Power connector

2 x podrška za 4 USB 5Gbps porta, 3 x podrška za 6 USB 2.0 porta

1 x podrška za 1 USB 20Gbps port

1x Front panel header

1 x 4-pin AIO Pump header, 1 x 4-pin CPU OPT Fan header, 1 x 4-pin CPU Fan header, 4 x 4-pin Chassis Fan headers, 1 x Thunderbolt™ (USB4®) header, 2 x SATA 6Gb/s, 1 x CPU Over Voltage jumper, 1 x Start button, 1 x 10-1 pin Front Panel System header, 4 x M.2 slots (Key M), 3 x Addressable RGB Gen 2 headers

Za iskorišćavanje određenih internih konektora potrebni su dodatni bracket-i ili priključci na kućištu

AURA Sync, LANGuard, UEFI Bios, Extreme Engine Digi+, Asynchronous Clock, ASUS Thermal Solution, ASUS EZ DIY, AI Cache Boost, AMD RAIDXpert2 Technology, ASUS Q-Design, ROG Exclusive Software, ASUS Exclusive Software, ASUS DriverHub, Integrated WiFi Driver Support, AI Overclocking Guide

ATX

305mm x 244mm

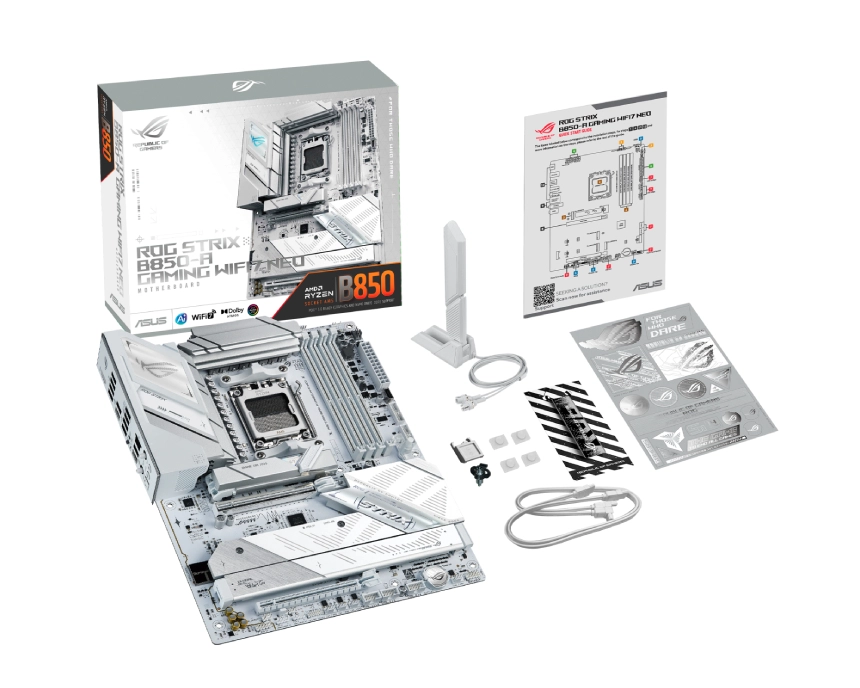

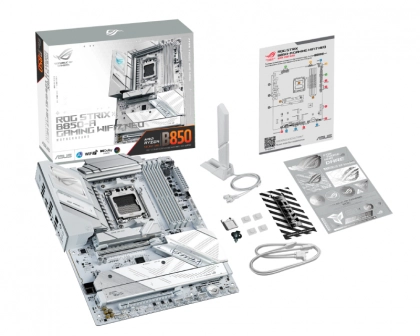

1 x Quick Start Guide, 2x SATA kabl, 1 x ASUS WiFi Q-Antenna, 1 x M.2 Q-Latch package, 1 x M.2 Q-Slide package, 1 x ROG Strix stickers, 4 x M.2 rubbers

36 meseci
