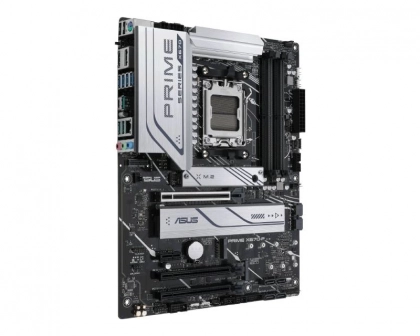

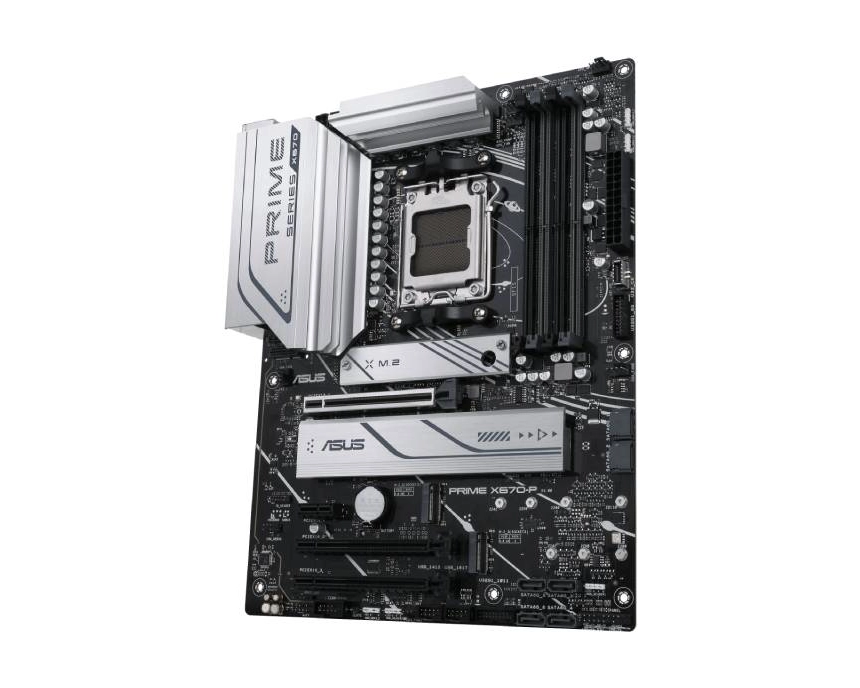

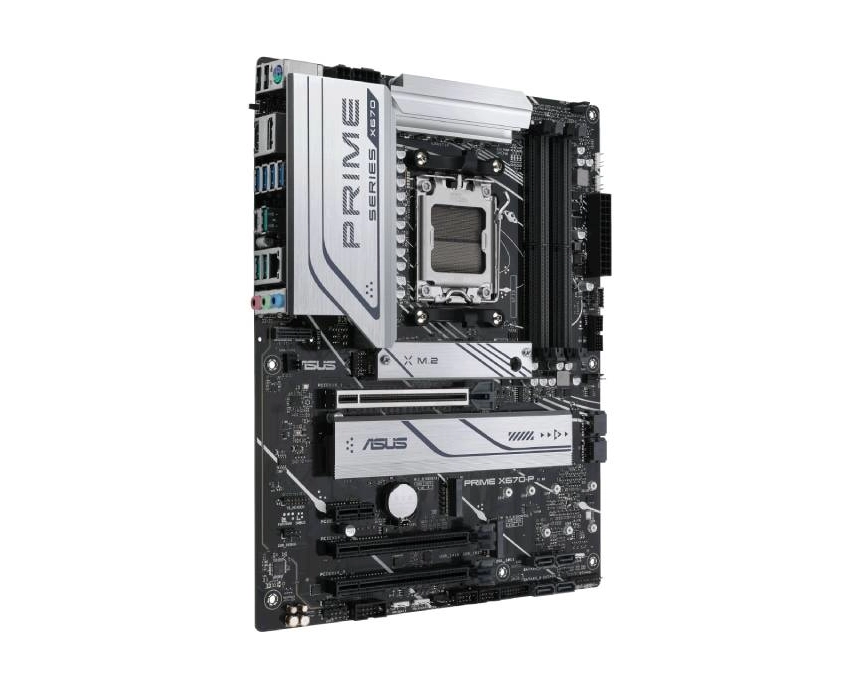

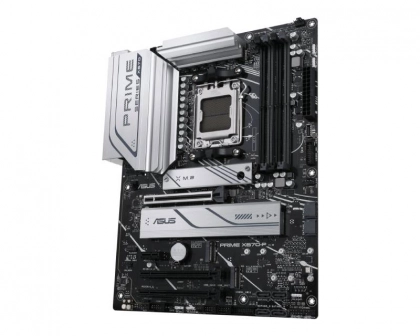

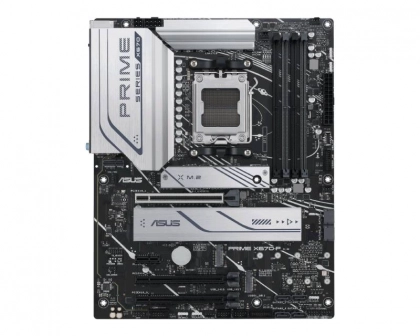

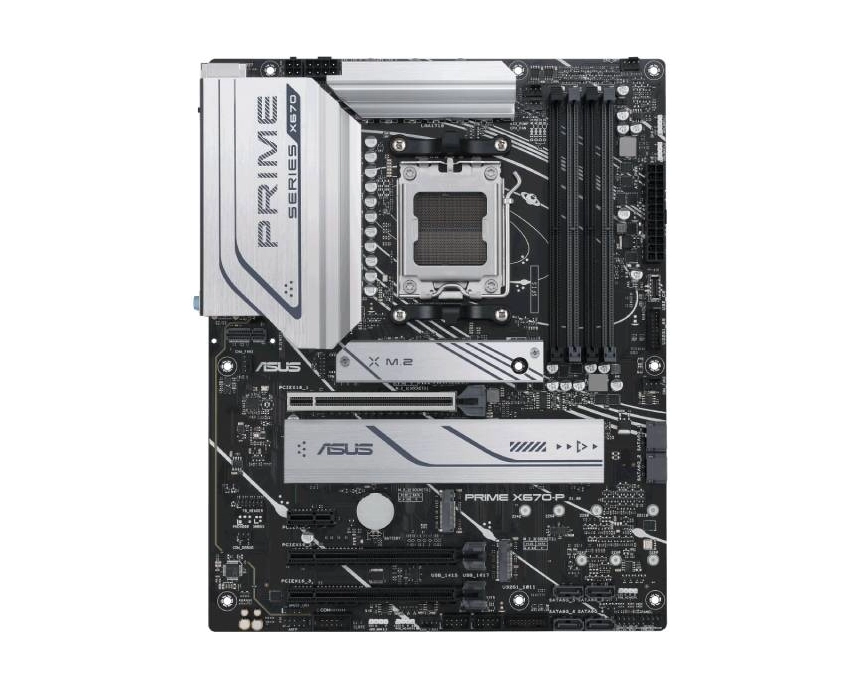

ASUS PRIME X670-P-CSM outlet

AMD AM5

AMD X670

Upotreba grafike iz procesora

DDR5

4

6.000MT/s (O.C.), 5.800MT/s (O.C.), 6.400MT/s (O.C.), 6.200MT/s (O.C.), 5.200MT/s, 5.000MT/s, 4.800MT/s, 5.600MT/s (O.C.), 5.400MT/s (O.C.)

192GB

Dvokanalni (Dual-channel) režim rada memorije, Podrška za non-ECC UDIMM memory, OptiMem II, Podrška za AMD EXTended Profiles for Overclocking (EXPO)

1x PCI Express 4.0 (x16 mode), 2x PCI Express 4.0 (x4 mode)

1x PCI Express 3.0

4

3x M.2 slot, 6x SATA III

6

SATA III 6Gbps

3

RAID 0, RAID 1, RAID 5, RAID 10

2.5GBase-T (Gigabit)

Realtek

8 (7.1)

Realtek

Audio Shielding, Jack-detection, Multi-streaming, Front Panel Jack-retasking, Supports up to 24-Bit/192 kHz playback, Premium audio capacitors, Dedicated audio PCB layers

1

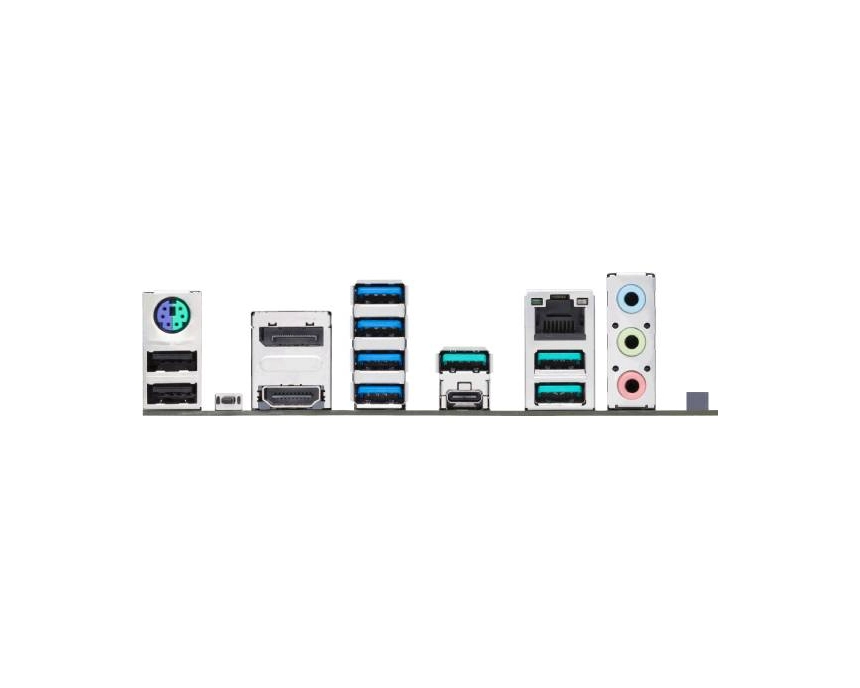

1x DisplayPort 1.4

1

1x HDMI 2.1

1 (tastatura ili miš)

10

1

2x USB 2.0, 4x USB 5Gbps (3.2 Gen 1), 3x USB 10Gbps (3.2 Gen 2)

1x USB 20Gbps (3.2 Gen 2x2)

1

3x 3.5mm

USB BIOS Flashback taster, 1 x V-M.2 slot (Key E)

1 x 24 pin Main Power connector, 1 x 8-pin ATX 12V power connector, 1 x 4-pin ATX 12V power connector

2 x podrška za 4 USB 2.0 porta, 2 x podrška za 4 USB 5Gbps porta

1 x podrška za 1 USB 5Gbps port

1x S/PDIF izlaz, 1x Front panel audio

1

1 x SPI TPM header, 1 x 4-pin AIO Pump header, 3 x 4-pin Chassis Fan headers, 1 x 20-5pin System Panel header, 1 x 4-pin CPU OPT Fan header, 1 x 4-pin CPU Fan header, 1 x Clear CMOS header, 3 x Addressable Gen 2 headers, 2 x Aura RGB Headers, 1 x Thunderbolt™ (USB4®) header

Za iskorišćavanje određenih internih konektora potrebni su dodatni bracket-i ili priključci na kućištu

AURA Creator, AURA Sync, Fan Xpert 4, DIGI+VRM, ASUS CrashFree BIOS 3, ASUS EZ Flash 3, ASUS UEFI BIOS EZ Mode, LANGuard, Overvoltage Protection, Stainless-Steel Back I/O, Q-DIMM, Q-Slot, Q-LED Core, TurboV EVO, PC Cleaner, SafeSlot Core+, ProCool, AI Cooling II, BIOS FlashBack button, ESD Guards, VRM heatsink design, BIOS FlashBack LED, M.2 Q-Latch, M.2 heatsink, ASUS Control Center Express(ACCE)

ATX

305mm x 244mm

Šrafovi, 2 x SATA 6Gb/s kabl, 2 x M.2 gumice

Neadekvatna ambalaža

12 meseci
