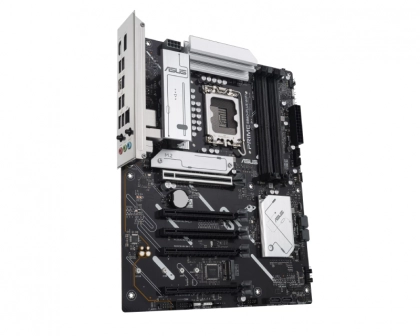

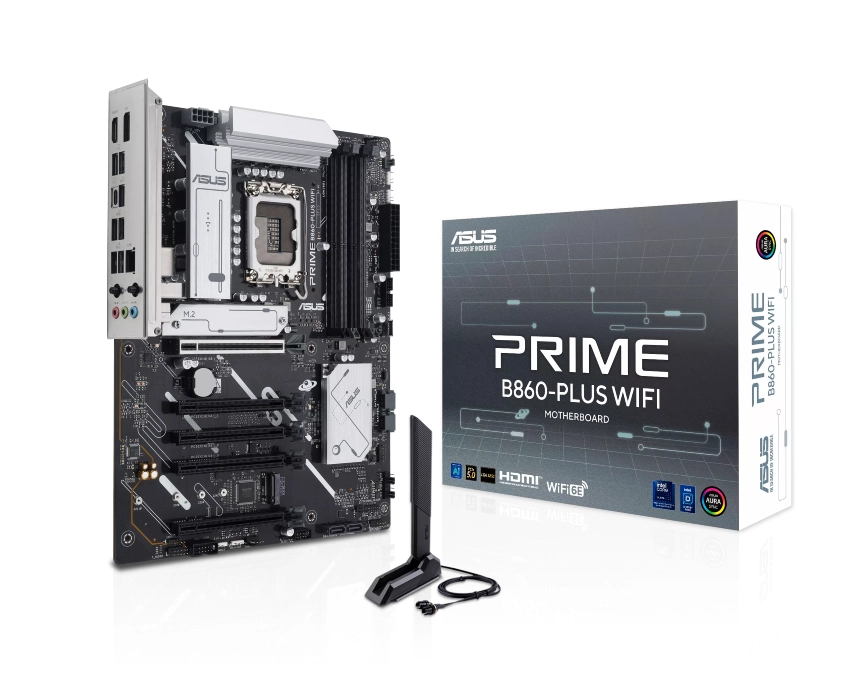

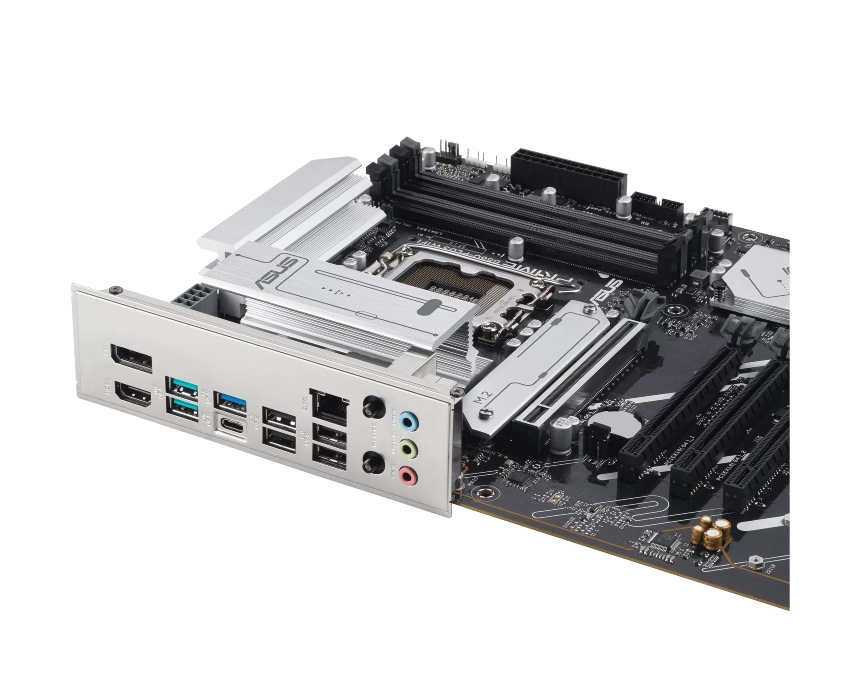

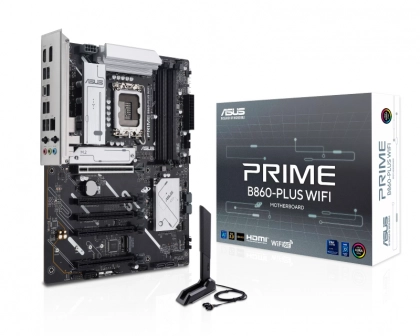

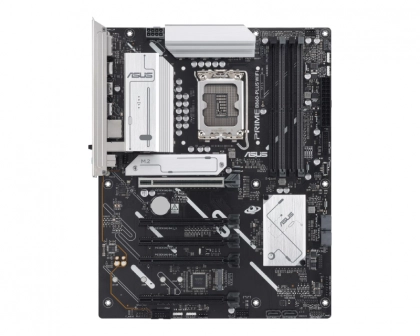

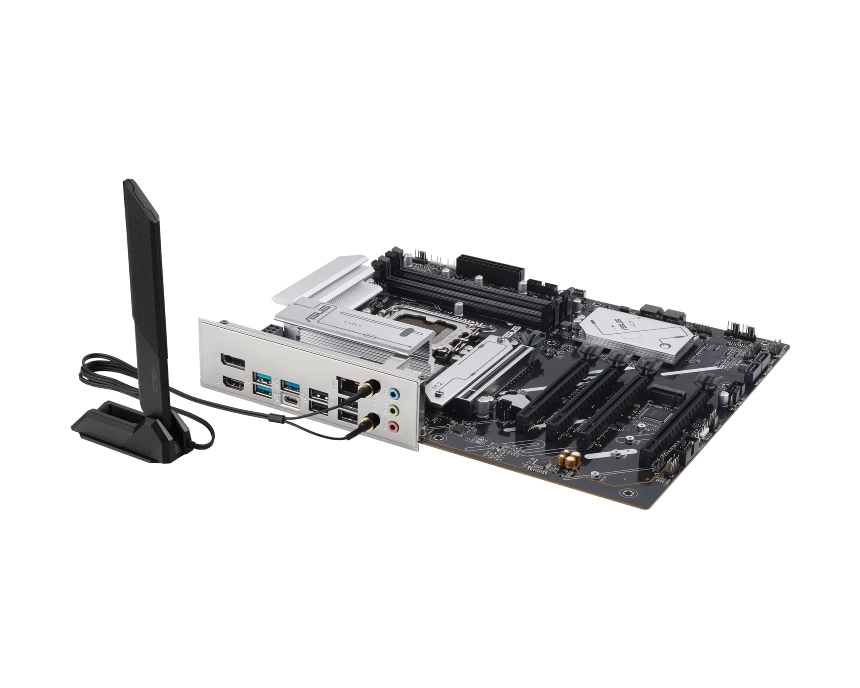

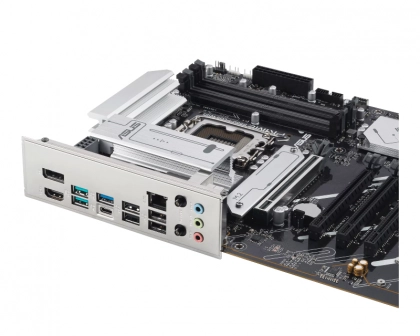

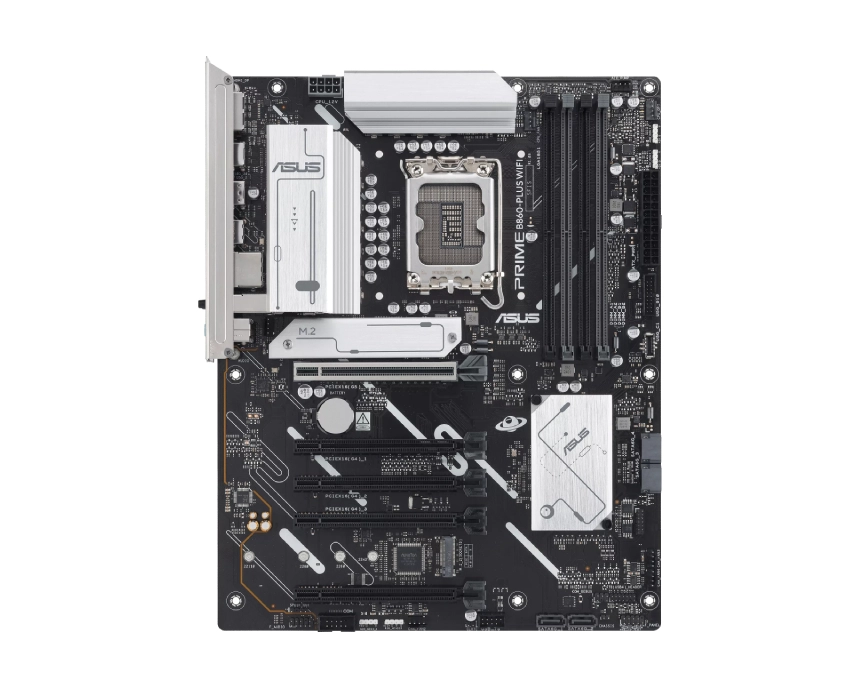

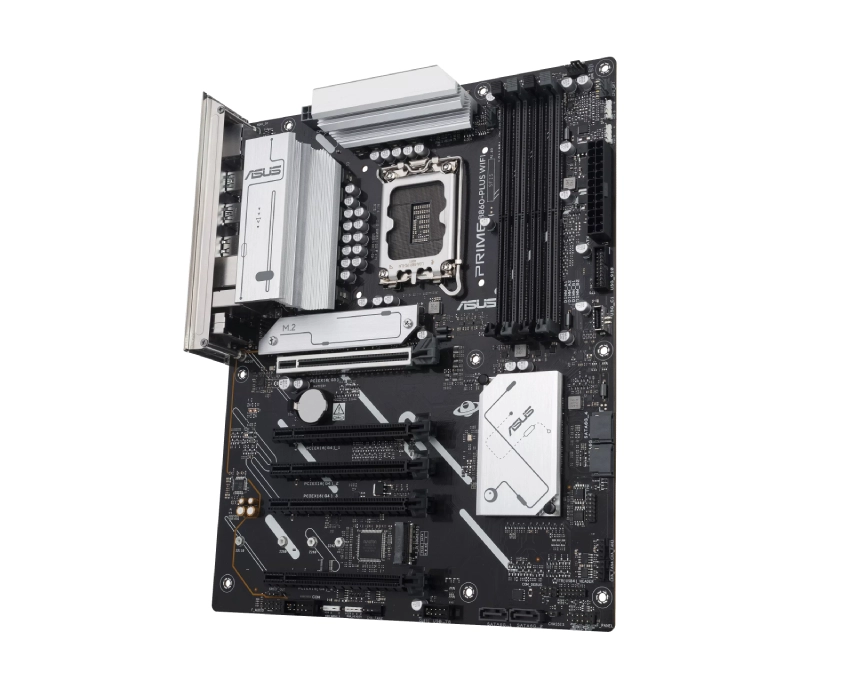

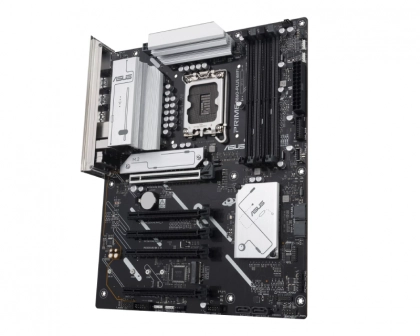

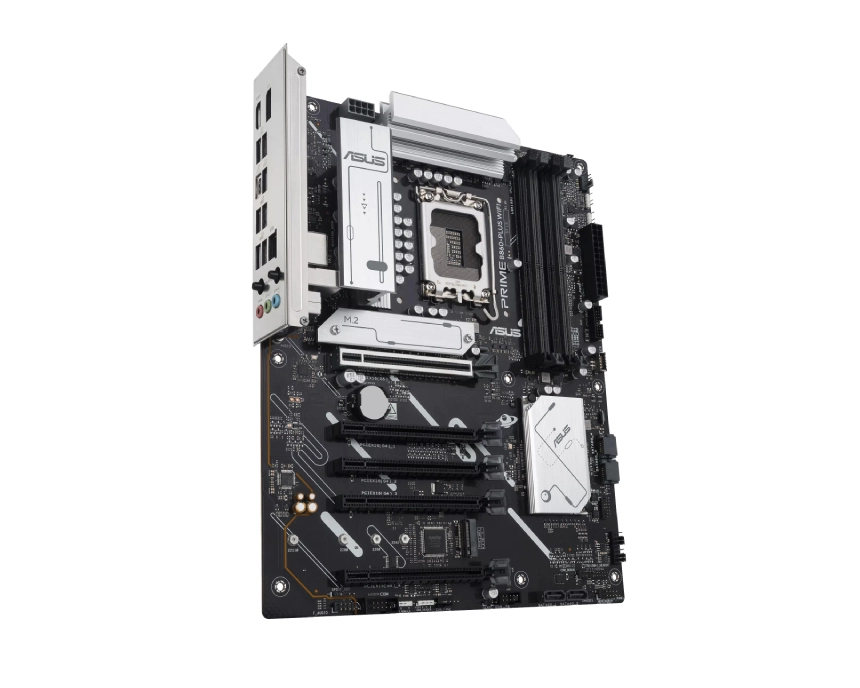

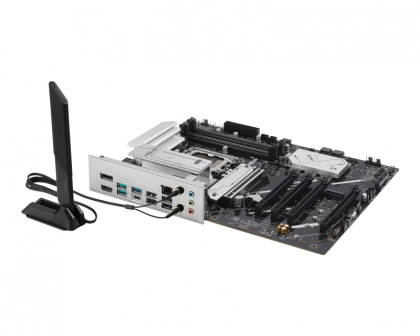

ASUS PRIME B860-PLUS WIFI matična ploča

Intel 1851

Intel B860

Upotreba grafike iz procesora

DDR5

4

8.666+MT/s (O.C.)

256GB

Podrška za Unbuffered ECC memoriju, Podrška za Extreme Memory Profile (XMP), Dvokanalni (Dual-channel) režim rada memorije, Podrška za non-ECC UDIMM memory, ASUS Enhanced Memory Profile III (AEMP III), Podrška za CUDIMM, DIMM Fit

1x PCI Express 5.0, 1x PCI Express 4.0 (x4 mode), 3x PCI Express 4.0 (x1 mode)

5

4

SATA III 6Gbps

3

1x 2242 / 2260 / 2280 (podrška za PCIe 5.0 x4 mod), 1x 2242 / 2260 / 2280 / 22110 (podrška za PCIe 4.0 x4 mod)

RAID 0, RAID 1, RAID 5, RAID 10

2.5GBase-T (Gigabit)

Realtek

Da

Wi-Fi 6E (802.11ax)

Da

5.3

7.1

Realtek

High Definition, Audio Shielding, Jack-detection, Multi-streaming, Front Panel Jack-retasking, Premium audio capacitors, Dedicated audio PCB layers, Supports up to 24-Bit/192 kHz playback

1

1x DisplayPort 1.4

1

1x HDMI 2.1

8

1

2x USB 10Gbps (3.2 Gen 2), 4x USB 2.0, 1x USB 5Gbps (3.2 Gen 1)

1x USB 20Gbps (3.2 Gen 2x2)

1

3x 3.5mm

1 x Wi-Fi Module

1 x 8-pin +12V CPU Power connectors, 1 x 24-pin Main Power connector

1 x podrška za 2 USB 2.0 porta, 1 x podrška za 2 USB 5Gbps porta

1 x podrška za 1 USB 5Gbps port

1x S/PDIF izlaz, 1x Front panel header

4 x SATA 6Gb/s ports, 1 x 4-pin AIO Pump header, 1 x 4-pin CPU OPT Fan header, 1 x 4-pin CPU Fan header, 1 x Clear CMOS header, 3 x Addressable Gen 2 headers, 4 x 4-pin Chassis Fan headers, 1 x COM Port header, 1 x AURA RGB header, 1 x Thunderbolt™ (USB4®) header, 1 x Chassis Intrusion header, 1 x SPI TPM header (14-1pin), 2 x M.2 slots (Key M), 1 x 10-1 pin Front System Panel header

Za iskorišćavanje određenih internih konektora potrebni su dodatni bracket-i ili priključci na kućištu

AURA Sync, DIGI+VRM, LANGuard, Overvoltage Protection, SafeSlot, Q-DIMM, Q-Slot, ProCool, UEFI Bios, VRM heatsink design, Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]), M.2 heatsink, Stainless-Steel Back I/O, ASUS CPU-Z, AI Advisor, DriverHub, GlideX, Armoury Crate, ASUS EZ DIY

ATX

305mm x 244mm

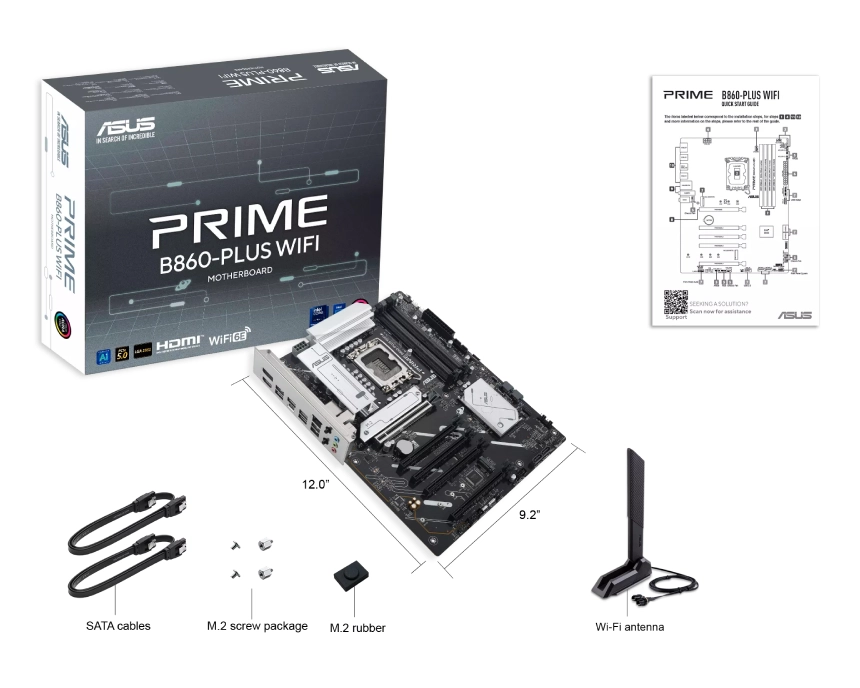

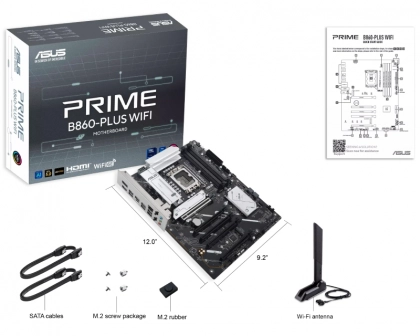

2 x SATA 6Gb/s kabl, 1 x Quick Start Guide, 1 x ASUS WiFi Q-Antenna, 1 x M.2 gumice, 1 x Screw package for M.2 SSD

36 meseci
